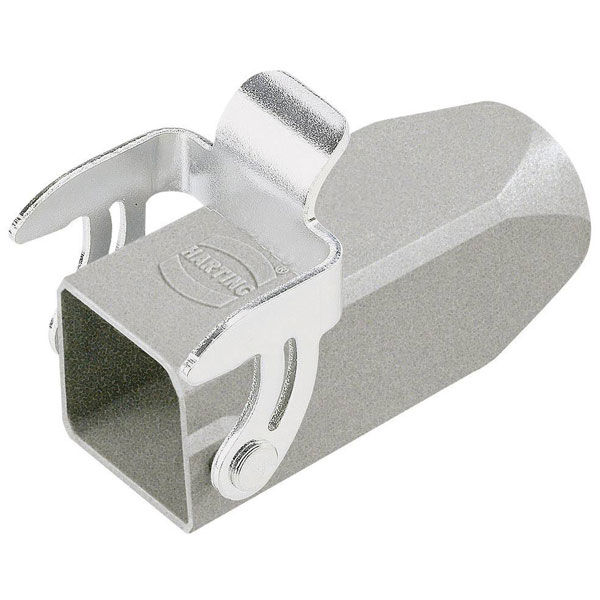

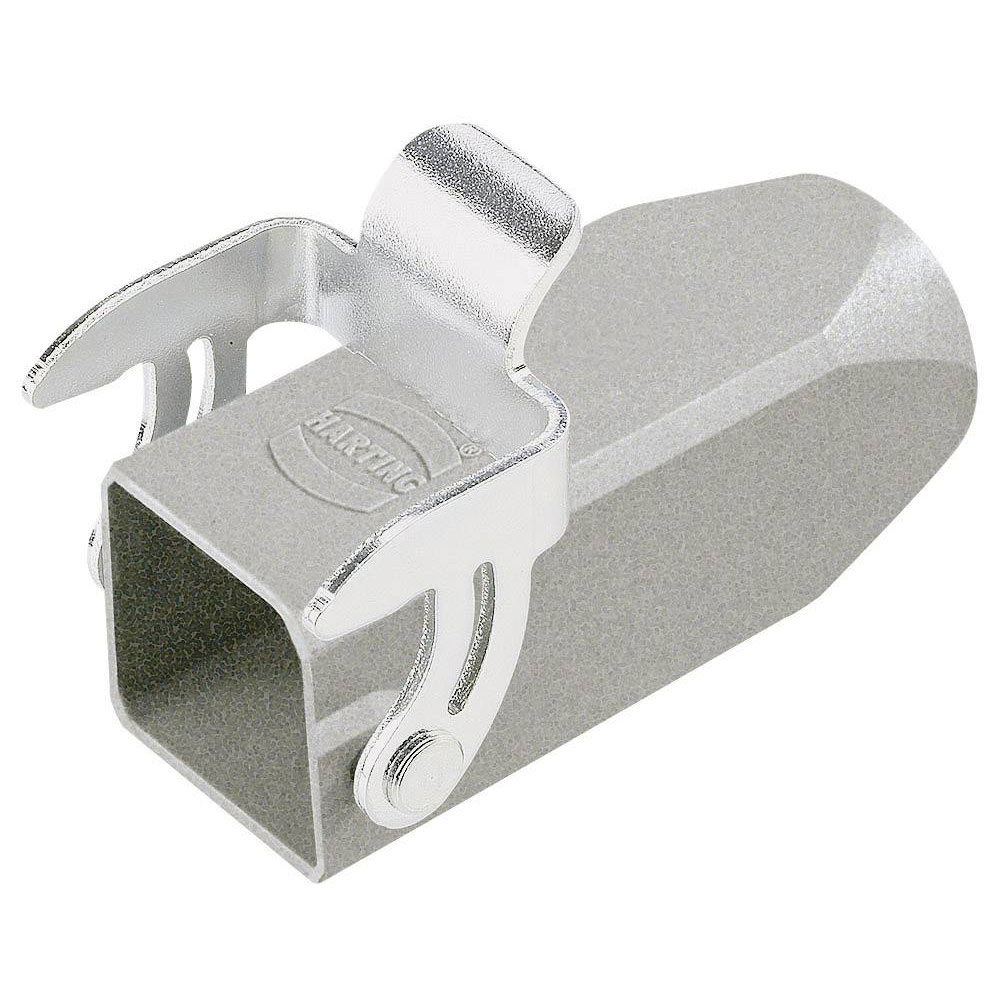

Harting's Han® 3A-kg-Pg11 connector enclosure is an industry-grade, heavy-duty component ideal for high voltage and multicore connections. This robust electrical engineering connector is designed for demanding environments, offering reliable performance in industrial settings. Typical applications include use in machinery, automation systems, and other critical electrical installations.
| Type |
Connector enclosure |
| Approvals |
CE |
| Cable Entry |
1x Pg 11 |
| Category |
Hoods / Housings |
| Colour |
Grey |
| Colour (hood/housing) |
RAL 7037 (dust grey) |
| Degree of protection acc. to IEC 60529 |
IP44 |
| ELV status |
compliant |
| Field of application |
Standard Hoods/housings for industrial applications |
| Fire protection on railway vehicles |
EN 45545-2 (2020-08) + A1 (2023-10) |
| IP Rating |
IP44 |
| Limiting temperature |
-40 ... +125 °C |
| Locking type |
Single locking lever |
| Material (hood/housing) |
Zinc die-cast |
| Material (locking) |
Steel |
| Misc Attribute |
Han® 3A-kg-Pg11 |
| Note on the limiting temperature |
For use as a connector according to IEC 61984. |
| Number of cable entries |
1 |
| Pack contents |
Please order seal screw separately. |
| REACH ANNEX XIV substances |
Not contained |
| REACH Annex XVII substances |
Not contained |
| REACH SVHC substances |
Not contained |
| Requirement set with Hazard Levels |
R1 (HL 1-3) |
| Series |
Han® 3A |
| Series of hoods/housings |
Han A® |
| Size |
3 A |
| Surface (hood/housing) |
Powder-coated |
| Surface (locking) |
Zinc plated |
| Thread Size |
PG11 |
| Type of hood/housing |
Cable to cable housing |
| Type rating acc. to UL 50 / UL 50E |
12 |
| UL / CSA |
UL 1977 ECBT2.E235076 |
| Version |
Top entry |
