Harting 09 18 540 7803.80 Pin Connector 2x20 Pins 2.54mm spacing

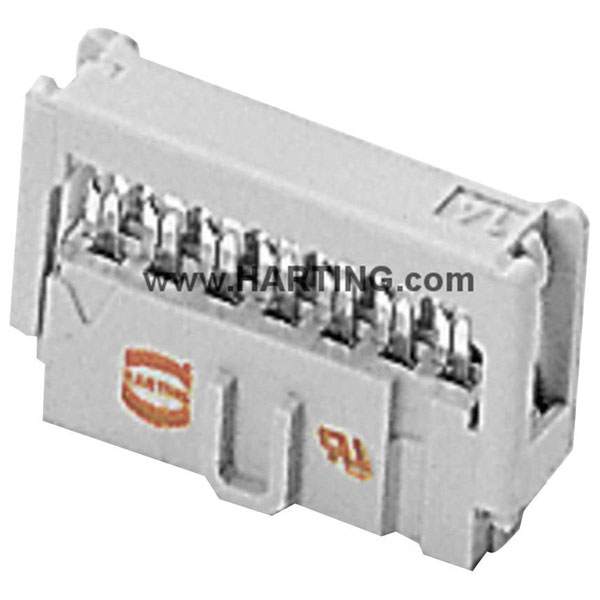

Image Representative of Range

Harting 09 18 540 7803.80 Pin Connector 2x20 Pins 2.54mm spacing

Harting
Standard range
Order Code:

03-9120

Brand: Harting MPN: 09 18 540 7803.80
Qty Unit Price (Ex VAT)
1+ £2.14
Price per unit {{ IncVat ? 'Inc' : 'Ex' }} VAT
6 in stock, despatched in 4 working days

The Harting pin connector, model 09 18 540 7803.80, features a contact spacing of 2.54 mm and comprises 40 pins arranged in 2 rows. It is typically used in electronic and electrical applications for connecting circuits within devices. This single piece component is durable and reliable, making it ideal for various connectivity solutions in compact electronic systems.
Board contact surface Gold plated
Case material PBTB according to UL94V0
Connection Cut & Clip
Connector contact surface Gold plated
Connector type Power strip
CS 2.54mm
Dim (L x W x H) 6.1 x 55.4 x 13 mm
Factory colour Grey
Height 13mm
Length 6.1mm
Manufacturer part # 09 18 540 7803.80
Max. temperature +125°C
Min. temperature -55°C
Misc Attribute 09 18 540 7803.80
No. of rows 2
Nominal current 2A
Pins per row 20
RoHS-compliant Yes
Total number of pins 40
Type Pin connector
Width 55.4mm
