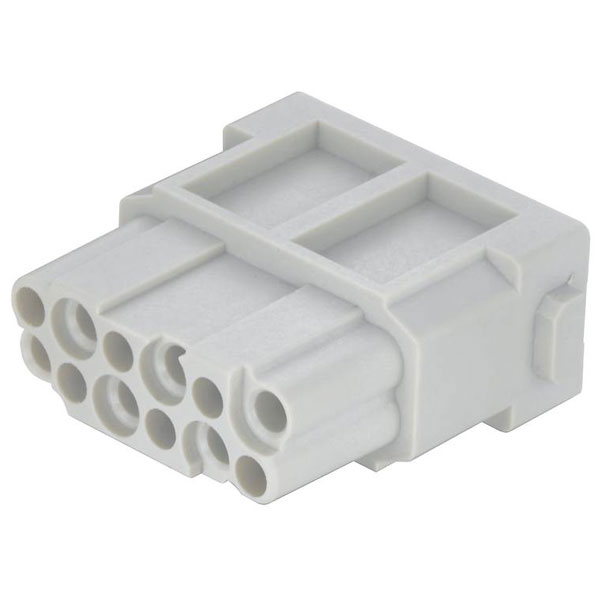

Harting 09 14 012 3102 Crimp Single Module 12 Contacts 1pc

The Harting 09 14 012 3102 is a single module, heavy-duty connector designed for industrial applications. This 12 crimp multi-core connector is ideal for high-voltage and industry-grade uses, offering robust performance in demanding environments. Typical applications include electrical engineering and other demanding industrial settings requiring reliable, durable connectivity.

Type	Single module
Approvals	DNV GL
Category	Modules
Colour (insert)	RAL 7032 (pebble grey)
Conductor cross-section (mm²)	0.14 ... 2.5mm²
Connectable conductor cross section fine-strand without cable end sleeve	0.14-2.5mm²
Connectable conductor cross section multi-wired	0.14-2.5mm²
Connection	Crimp
Contact insert without contacts	TRUE
Contact Type	Bus
Details	Please order crimp contacts separately.
ELV status	compliant
Factory colour	Pebble grey (RAL 7032)
Fire protection on railway vehicles	EN 45545-2 (2020-08) + A1 (2023-10)
Gender	Female
Inflammability class of insulation material according to UL94	V0
Insulation Resistance	>1010O
Limiting temperature	-40 ... +125 °C
Material (insert)	Polycarbonate (PC)
Material connector insert	Thermoplastic
Material contact	Other
Material flammability class acc. to UL 94	V-0
Material of contact insert	Thermoplastic
Material of contact surface	Other
Mating cycles	= 10,000
Min. number of insertion cycles	500
No. of Ways	12
Note on the mating cycles	Mating cycles with other HMC components
Number of Contacts	12
Number of Pins	12
Number of Poles	12
Number of power contacts	12
Operating Temperature	-40-125°C
Pollution degree	3
Rated current	? 10 A
Rated current In	10A
Rated impulse voltage	4 kV
Rated Surge Voltage	4kV
Rated voltage	250V
Rated voltage acc. to UL	600 V
REACH ANNEX XIV substances	Not contained
REACH Annex XVII substances	Not contained
REACH SVHC substances	Not contained
Requirement set with Hazard Levels	R22 (HL 1-3)
Series	Han-Modular®
Size of the module	Single module
Specifications	IEC 60664-1
Termination Method	Crimp termination
Type of electric connection	Crimp connection
Type of module	Han DD®module
UL / CSA	UL 1977 ECBT2.E235076
Wire outer diameter	=3.9mm
With protective conductor	FALSE
With wire protection	FALSE
