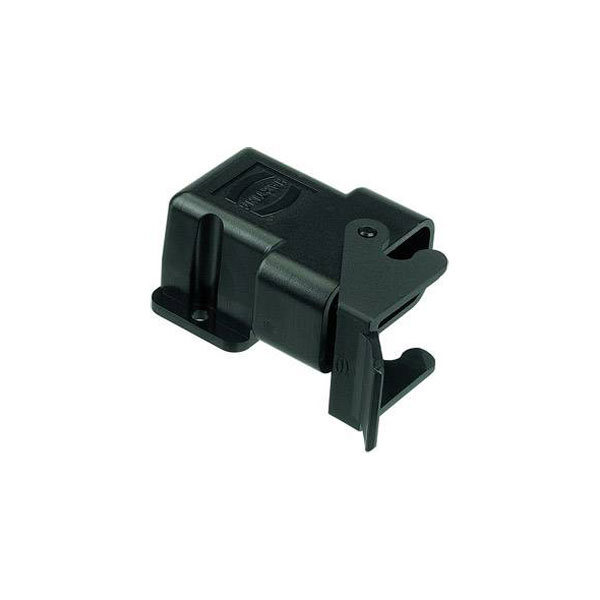

Harting 09 12 008 0902 Enclosure Extension robust durable 1pc

The Harting Enclosure Extension 09 12 008 0902 is a high voltage, heavy-duty industrial connector designed for use in electrical engineering applications. It is suitable for multicore connections and industry-grade requirements. This product is typically used in settings requiring robust and reliable connectivity solutions.

Type	Enclosure extension
Approvals	CE
Category	Hoods / Housings
Colour	Black
Colour (hood/housing)	RAL 9005 (jet black)
Colour (locking)	RAL 9005 (jet black)
Degree of protection acc. to IEC 60529	IP65
Description of hood/housing	Angled
ELV status	compliant
Field of application	Hoods/housings for industrial applications
Fire protection on railway vehicles	EN 45545-2 (2020-08) + A1 (2023-10)
IP Rating	IP65
Limiting temperature	-40 ... +125 °C
Locking type	Single locking lever
Material	Polycarbonate
Material (hood/housing)	Polycarbonate (PC)
Material (locking)	Polyamide (PA)
Material (seal)	NBR
Material flammability class acc. to UL 94	V-0
Material flammability class acc. to UL 94 (locking levers)	V-0
Max. temperature	+125°C
Min. temperature	-40°C
Note on the limiting temperature	For use as a connector according to IEC 61984.
REACH ANNEX XIV substances	Not contained
REACH Annex XVII substances	Not contained
Requirement set with Hazard Levels	R22 (HL 1-3)
Series	Han-Compact®
Series of hoods/housings	Han-Compact®
Size	Han-Compact®
Type of hood/housing	Bulkhead mounted housing
Type rating acc. to UL 50 / UL 50E	4
UL / CSA	UL 1977 ECBT2.E235076
