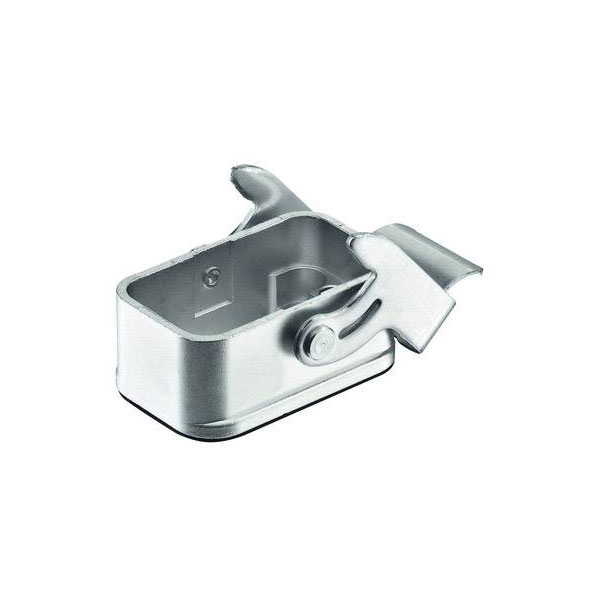

Harting 09 12 008 0303 Enclosure Extension 1pc robust design

Harting manufactures the 09 12 008 0303 enclosure extension, known for its high voltage and heavy-duty connector attributes. The product is designed for industrial use, providing robust and reliable connections in electrical engineering applications. This multicore connector is suitable for industry-grade environments, ensuring safe and efficient performance.

Type	Enclosure extension
Approvals	CE
Category	Hoods / Housings
Colour	Metal
Degree of protection acc. to IEC 60529	IP65
ECHA SCIP number	564b7d75-7bf6-4cfb-acb1-2168eb61b675
ELV status	compliant with exemption
Field of application	Hoods/Housings for higher EMC requirements
IP Rating	IP65
Limiting temperature	-40 ... +125 °C
Locking type	Single locking lever
Material	Diecast zinc
Material (hood/housing)	Zinc die-cast
Material (locking)	Stainless steel
Material (seal)	NBR
Max. temperature	+125°C
Min. temperature	-40°C
Note on the limiting temperature	For use as a connector according to IEC 61984.
REACH ANNEX XIV substances	Not contained
REACH Annex XVII substances	Not contained
Series	Han-Compact®
Series of hoods/housings	Han-Compact®
Size	Han-Compact®
Surface (hood/housing)	Nickel plated
Type of hood/housing	Bulkhead mounted housing
Type rating acc. to UL 50 / UL 50E	12
UL / CSA	UL 1977 ECBT2.E235076
