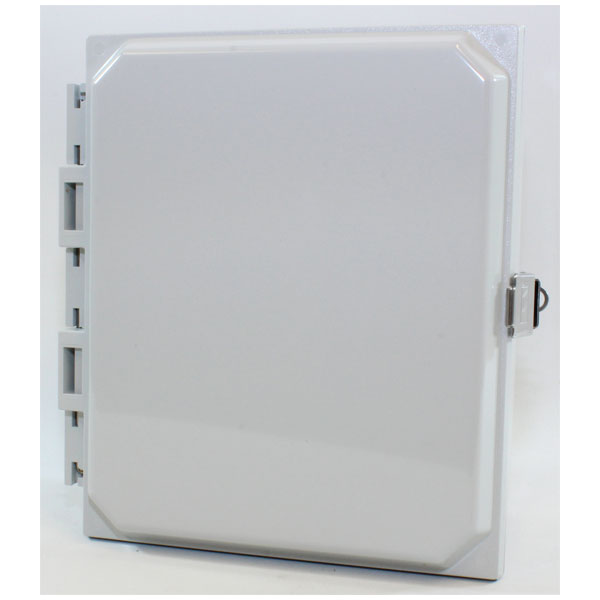

Hammond PCJ1084L IP66 Type 4X Polycarbonate Junction Box Hinged Lid Snap Latch

Standard range
Order Code:

31-1760

Brand: Hammond MPN: PCJ1084L UPC-12: 623980982434
Qty Unit Price (Ex VAT)
1+ £84.64
Price per unit {{ IncVat ? 'Inc' : 'Ex' }} VAT
5 available to back orderBack-order availability date - 11/12/2024

The Hammond PCJ Series Polycarbonate Junction Box is designed to provide insulation and protection for controls and components for use in both indoor and outdoor conditions.
The Enclosure is watertight to IEC 60529, IP66 with a flammability rating of UL94,V-0.

Ideal for use with industrial pump controls, waste water, irrigation, solar/wind and chemical plant controls.

The injection moulded polycarbonate thermoplastic enclosure with matching door, can be easily punched, cut, or drilled.
It comes in a light grey finish and features enhanced UV inhibitors to protect against outdoor weathering.
The door is secured with Snap Latch door fasteners, which include provision for the addition of a padlock, if required.
A captive, oil resistant gasket provides a seal when the door is closed.
Threaded brass inserts are provided on the inside rear of the enclosure, to enable fitting of an optional internal mounting panel or terminal kit mounting.
Multi-directional mounting of the enclosure is possible, using the Polycarbonate foot mount brackets provided.
Mounting hardware is included.

Optional inner panels are available in a white powder coated steel finish.


  • Injection moulded polycarbonate thermoplastic enclosure with matching door
  • Moulded hinges
  • Operating temperatures between 130°C and - 35 °C (266°F to - 31 °F)
  • UV rating (f1) per UL746C - UV stabilized for outdoor use
  • Impact index of 16 J (12 ft/lb)
  • Dimensions: H252 x W207 x D101mm
  • Optional Inner Panel Dimensions: H222 x W175mm
  • Weight: 2.27kg
  • Light Grey finish
  • Stainless steel 316 screw fasteners

  • NOTE: When fitting equipment within the enclosure, refer to the manufacturer's data sheet, for precise measurements.

    Hammond enclosure modification


    Colour Light Grey
    External Features Pre-drilled holes for mounting
    Internal Features Threaded panel mounting inserts
    Material Polycarbonate
    Depth 101mm
    Finish N/A
    Flame Resistance UL94 V-0
    Height 252mm
    IP Rating IP66
    Length N/A
    Series PCJ
    Type Enclosure
    Weight 2.27kg
    Width 207mm
