Hammond Manufacturing 1427DIN75M Din Clip - Metal

Hammond
MPN
1427DIN75M
Brand
Hammond
UPC-12
623980483443
Order Code
30-3693
Country of Origin
Canada
View Full Product Range (4)
Qty Unit Price (Ex VAT)
1+ £11.75
50+ £8.56
Price per unit {{ this._page.IncVat ? 'Inc' : 'Ex' }} VAT
Despatched within 1 working day - 245 in stockBack-order availability date - 22/05/2026

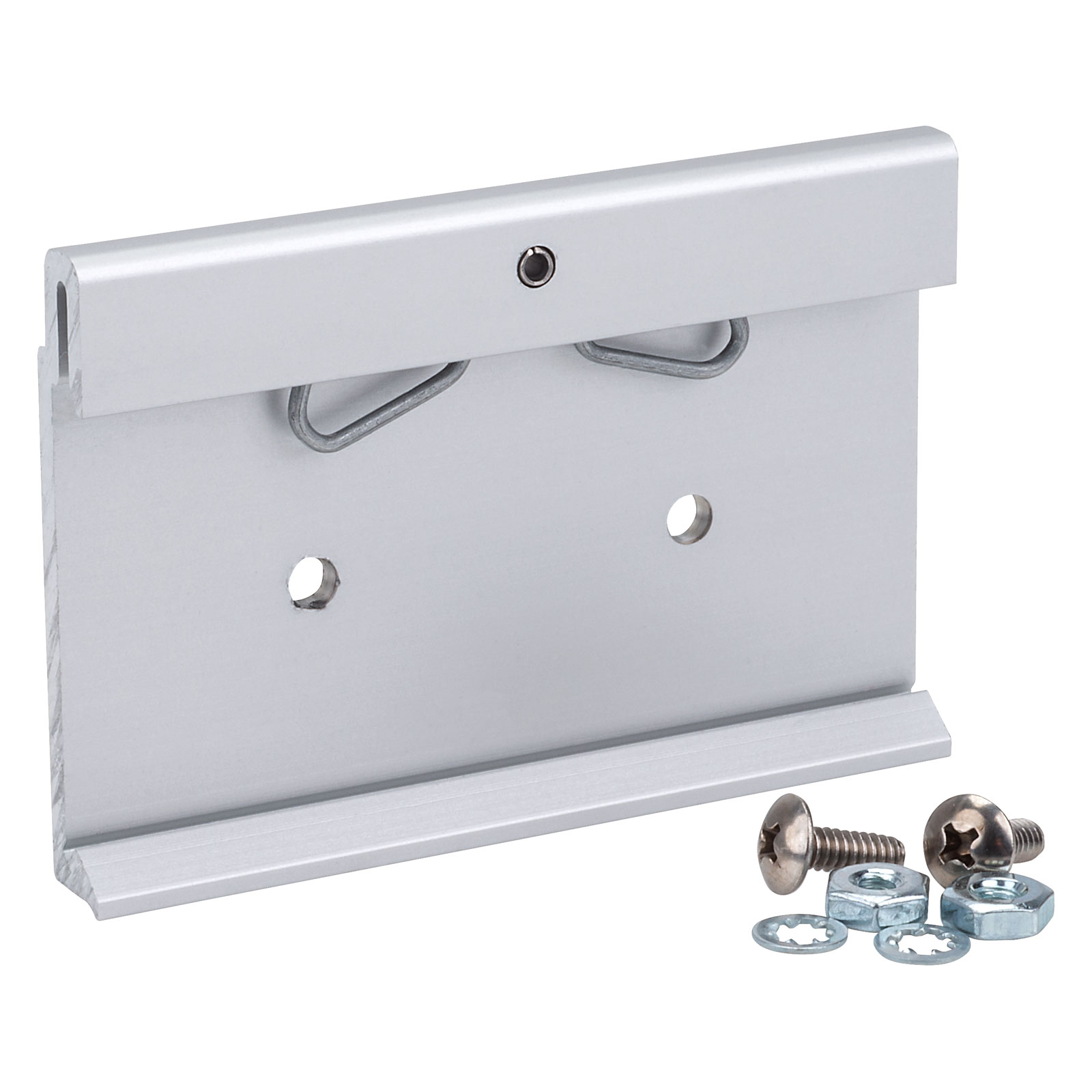

Aluminium DIN clips, designed for mounting enclosures on to 35mm wide DIN rails.


  • Width: 75mm
  • Includes hardware (2x 6-32 pan-head screw, 2x nut and 2x lock washer)
  • Centre to centre hole spacing is 33mm (1.299in.)
  • Material: clear anodised aluminium with spring steel wire clip
  • Recommended maximum weight load is 56kg (125 lbs.) per clip
  • Supplied singly
  • Hammond Manufacturing type 1427DIN75M

Hammond enclosure modification


Type DIN rail
Enclosure Height 45.7mm
Enclosure Length 10.1mm
Enclosure Width 35mm
Colour Silver
Protection Rating None
Material Aluminium
