Hameg HZ530 EMV Near-field probe Set 1GHz

he HZ530 Probe Set consists of three active broadband probes for EMI diagnosis. The probes are designed for connection to a HAMEG spectrum analyzer with input impedance of 50O. The probes can be powered by the spectrum analyzer or batteries. The slim format ensures easy access to the test object even in cramped test environments.
The H-field probe provides a signal that is proportional to the magnetic field strength to the spectrum analyzer. This makes it possible to localize sources of interference with relatively high precision.

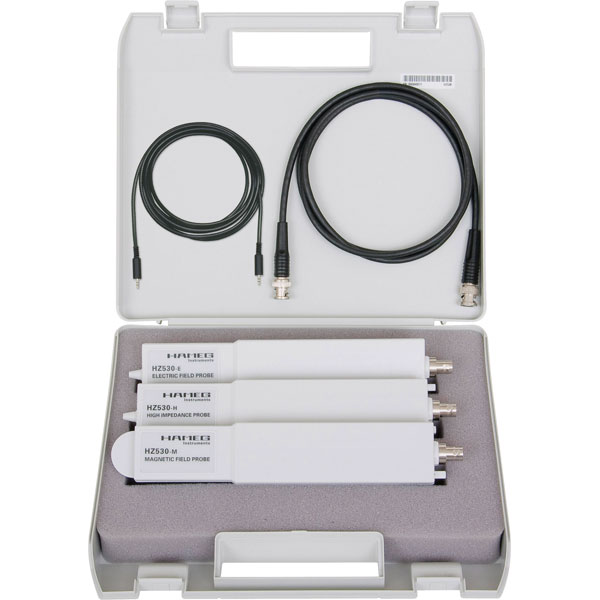

This Hameg HZ530 EMV Near-field probe Set 1GHz; contains:-

1x E-field probe
1x H-field probe
1x High impedance probe

The high-impedance probe can be used to determine interference levels on contacts, lines and printed circuit boards.
The E-field probe is the most sensitive of the three probes. It can be used to assess the total effect of shielding and filtering in a tested unit.
HAMEG Instruments are well known for oscilloscopes and test equipment for more than 50 years.

• Manufactured by: HAMEG Instruments
• Part no.: HZ530
• Category: EMV Near-field probe Set; 1GHz
