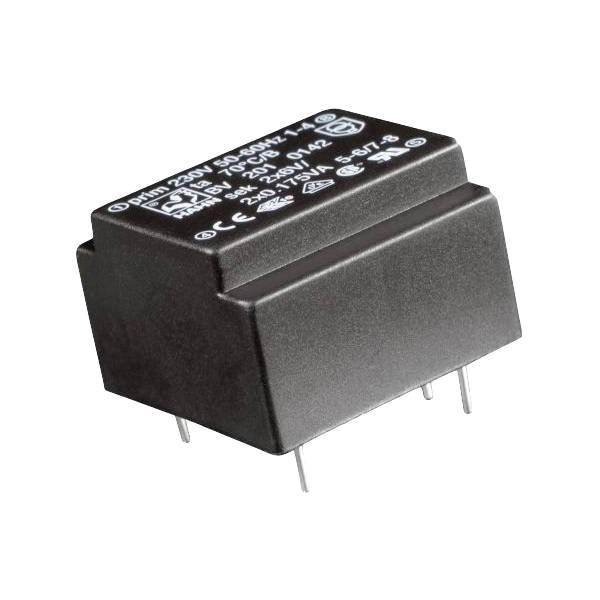

Hahn BV EI 306 8003 pieceB Transformer 230V/12V AC 2.8VA 233mA Durable

The Hahn BV EI 306 8003 PCB mount transformer is a compact and efficient solution with a primary voltage of 230 V and a secondary voltage of 12 V AC, delivering a power rating of 2.8 VA and a current of 233 mA. It is designed for easy installation on printed circuit boards, making it suitable for various automation and electronic applications. This transformer is ideal for low-power electronic devices requiring reliable voltage transformation in a compact form factor.

Type	PCB mount transformer
Dim	(L x W x H) 32.50 x 27.50 x 34 mm
Frequency	50 - 60Hz
Height	34mm
Input voltage	230V
Input voltage (number x voltage)	1 x 230 V
Length	32.50mm
Max. ambient temperature	70°C
Misc Attribute	BV EI 306 8003
No. of inputs	1
No. of outputs	1
Output Current	233mA
Output voltage	12V AC
Output voltage (number x voltage)	1 x 12 V AC
Power	2.8VA
RoHS-compliant	Yes
Width	27.50mm
