Garo SS 363 IP65 3 Pole Rotary Isolator Switch 63A

Garo
Order Code:

65-4165

Brand: Garo MPN: SS 363 IP65

Discontinued

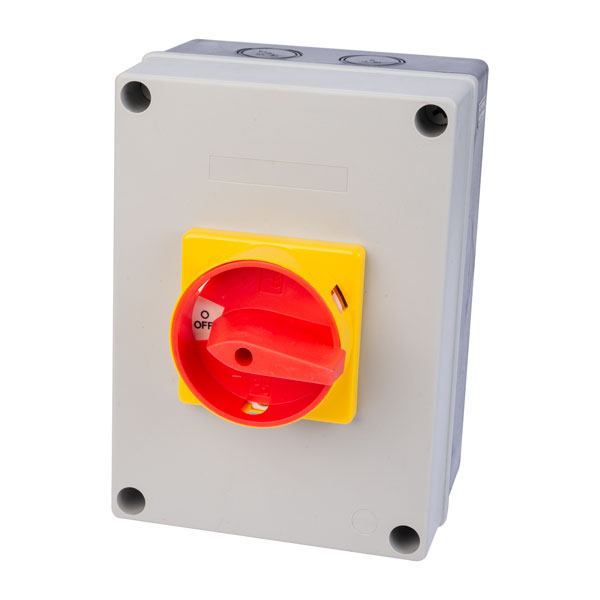

The Garo SS 363 63A safety switch is an IP65 rated, 3 Pole Rotary Isolator Switch is in a grey enclosed polycarbonate body.

The switch features a red handle with yellow shroud, and is used to isolate power in EV installations for safety and maintenance purposes.


Product DescriptionGaro SS363 3 Pole Safety Switch, 63A
Replenishh Order Code:65-4165
Supplier Code:SS 363 IP65
Product Type:EV Safety Switch
Fuse Rating63A
Fuse TypeJ
Mounting Knockout SizeØ25mm
Max Terminal Entry4mm² ~ 16mm²
IEC/EN/VDE RatedYes
UL/CSA RatedYes
Enclosure ColourGrey
Handle ColourRed and Yellow
Dimensions (H x W x D)175 x 125 x 90mm
MaterialABS / Polycarbonate
IP RatingIP65

Features

Round padlocking device (Max 3 padlocks)
Number of Poles 3
Maximum Current 63A
IP Rating IP65
Accepts Padlock Yes
Handle Colour Red
Power Rating @ 220-240V 11kW
Terminal Type Screw
Tightening Torque 1.7Nm
