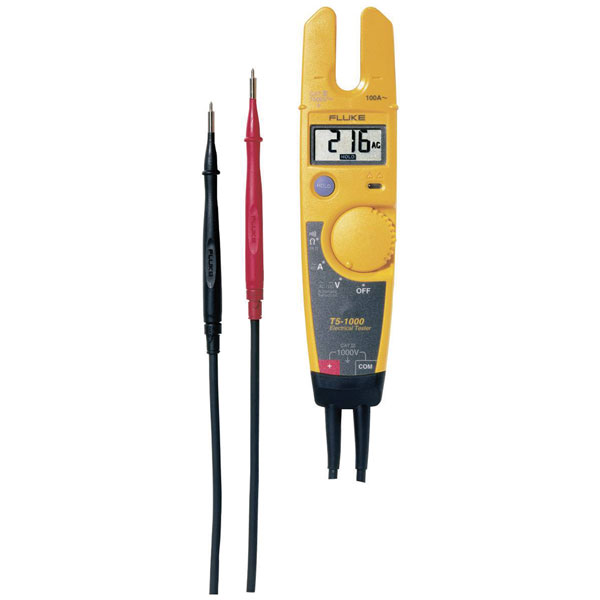

Fluke 659570 T5-1000 voltage tester CAT III 1000 V LCD acoustic

Electrical tester with OpenJaw™ Current The Fluke T5 Electrical Testers let you check voltage, continuity and current with one compact tool. With the T5, all you have to do is select volts, ohms, or current and the tester does the rest. OpenJaw™ current lets you check current up to 100A - without breaking the circuit. Its tough test leads stow neatly in the back of the tester, making it easy to tote the T5 in your tool pouch. Detachable SlimReach™ test probes are customised for national electrical standards. The test leads accept optional accessories such as clips and specialty probes. The optional H5 holster lets you clip the T5 onto your belt. Available in 600V and 1000V models.

Maximum Voltage	1000V
Display Type	Digital (LCD)
Automatic circuit breaker	false
Bluetooth interface	false
Cable length measurement	false
Cable symmetry testing for two wire connections a-b-E	false
Calibrated	Manufacturer's standards (no certificate)
Calibration according to ISO/IEC 17025	N/A
Calibration certificate according to DAkkS	N/A
Capacitance Measurement	false
Clip factors for current sensor	N/A
Clip factors for current transformer	N/A
COFRAC certified	N/A
Continuity test	true
Current supply	Battery
Data hold	true
Degree of protection (IP)	IP40
Dimensions	(L x W x H) 31 x 51 x 203 mm
Display (details)	LCD (4000 counts)
Duty cycle measurements	false
Explosion-tested version	false
Frequency measurement	false
Frequency Range	45 Hz - 66 Hz
Harmonics analysis/power quality	false
Height	203mm
High voltage test for motor windings	false
Indication	Digital
Inductance measurement	false
Insulation Test Voltage	CAT III
Interface	false
IP Rating	IP52
IR interface	false
Isolation resistance measuring range	N/A
Length	31mm
Lowest resolution temperature	N/A
Lowest resolution, AC current	Other
Lowest resolution, AC voltage	Other
Lowest resolution, AC/DC current	N/A
Lowest resolution, AC/DC voltage	N/A
Lowest resolution, capacitance	N/A
Lowest resolution, DC current	N/A
Lowest resolution, DC voltage	Other
Lowest resolution, frequency	N/A
Lowest resolution, resistance	1 Ohm
Max. capacitance measuring range	N/A
Max. current measuring range with clip factor	N/A
Max. current measuring range, AC	100A
Max. current measuring range, AC/DC	N/A
Max. current measuring range, DC	N/A
Max. frequency	66Hz
Max. frequency measuring range	N/A
Max. resistance measuring range	0.001MOhm
Max. temperature measuring range	N/A
Max. value storage	false
Max. voltage measuring circuit category	600V
Max. voltage measuring range AC	1000V
Max. voltage measuring range AC/DC	N/A
Max. voltage measuring range DC	1000V
Measured value memory	false
Measurement principle	N/A
Measuring circuit category	CAT IV
Measuring range selection	Automatic
Milliohm measurement with 4 wire technique (Kelvin connection)	false
Min. frequency	45Hz
Min. value storage	false
Misc Attribute	T5-1000
Multiple display	false
Nominal test voltage 10 V	false
Nominal test voltage 100 V	false
Nominal test voltage 1000 V	false
Nominal test voltage 250 V	false
Nominal test voltage 50 V	false
Nominal test voltage 500 V	false
Peak value memory	false
Power and energy measurement	false
Power supply (details)	2 x 1.5 mmV DC
Reading Category	CAT III 1000 V
Relative measurement accuracy	N/A
Relative value measurement	false
Resistance test/diode test	false
Rotational speed measuring	false
Scaling bar graph linear	false
Scaling bar graph logarithmic	false
Temperature measurement	false
Temperature measurement RTD	false
Temperature measurement TC	false
True RMS measurement	false
Type	Voltage Tester
V AC reading range (min.)	1V
Voltage reading range DC (min.)	1V
Width	51mm
With conductivity measurement	false
With decibel measurement (dB)	false
With display backlight	false
