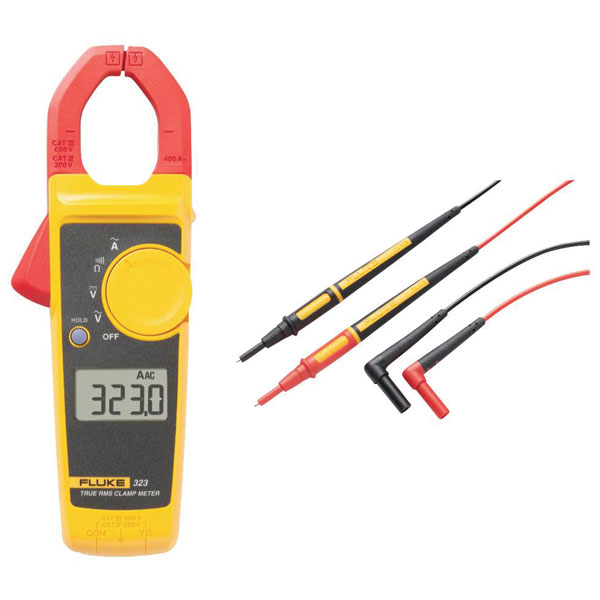

Fluke 6003368 FLK-323/TL175 clamp meter, digital, CAT III 600V, 4000 counts

Real effective amps clamp Real-effective measurements and optimized ergonomics make the 320 series clamp-on ammeters the most important for installation and troubleshooting in industrial and building technology applications. The model Fluke 323 is perfectly suitable for current measurements up to 400 A in cramped switch cabinets. TL175 TwistGuard leads set Silicone measurement leads set of the special kind: In order to meet the requirements of EN 61010-031 safety classifications, the over-voltage category can be set between CAT II 1000 V and CAT III 1000 V/CAT IV 600 V because of the rotating measurement tip adjustment. Moreover, damages become visible immediately owing to the second white silicone layer. Design with 2 mm thin measuring tip.

Type	Clamp meter
Display Count	4000
A AC reading range (min.)	0.1A
AC resistance	10MΩ
Amperage reading range AC (max.)	400A
Basic accuracy	1%
Calibrated to	Manufacturer's standards (no certificate)
Current reading	AC
Dc Resistance	10MΩ
Dim	(W x H) 75 mm x 207 mm
Display	Digital
Frequency Range	45 Hz -400Hz
Height	207mm
Interfaces	none
Measurement type (details)	True RMS
Misc Attribute	FLK-323/TL175
Opening range of current clamps	40mm
Power supply (details)	2x AAA battery
Reading range - resistance	0.1 Ω - 4000Ω
V AC reading range (max.)	600V
V AC reading range (min.)	0.1V
Voltage DC reading range (max.)	600V
Voltage metering	AC/DC
Voltage reading range DC (min.)	0.1V
Width	75mm
