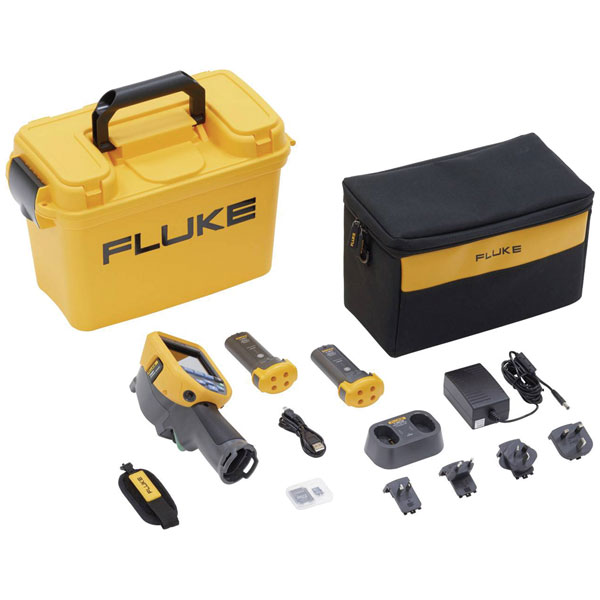

The Fluke TiS60 + detects small temperature differences from a distance
The TiS60+ offers a fixed focus and the required resolution, so that you can take high-quality pictures from a distance, even if you are new to thermography or if the camera is used by people with different thermography experience.
The TiS60+ shows you things that are not visible to the naked eye and makes problems visible that are not visible with other technologies.
It is an easy-to-use, reliable tool that the team can always rely on.
Fluke Connect™ desktop software helps you get the most out of your
TiS60+.
Create professional reports within minutes and perform fully radiometric data collection to support your maintenance program.
Edit and optimize images- Combine infrared and visual images to simplify analysis
- Generate detailed reports
Access to thermal images in cloud storage
- Organize and search images by asset, severity, and title
.
| Type |
Case |
| Display Resolution |
320 x 240 Pixel |
| Thermal Sensitivity |
45 mK |
| Accuracy ± °C |
0.045°C |
| Ambient temperature |
-10 - 50°C |
| Analogue video out |
false |
| Auto focus |
false |
| Auto orientation |
false |
| Battery powered |
true |
| Bluetooth interface |
true |
| CompactFlash I card slot |
false |
| CompactFlash II card slot |
false |
| Degree of protection (IP) |
IP54 |
| Detector cooled |
false |
| Digital zoom |
N/A |
| Display diagonal |
3.5in |
| Display resolution (horizontal) |
320px |
| Display resolution (vertical) |
240px |
| Ethernet |
false |
| External power supply required |
false |
| Field of view (FOV) horizontal |
34.1° |
| Field of view (FOV) vertical |
25.6° |
| FireWire (IEEE1394) connection |
false |
| Focus stacking |
false |
| Frame rate |
9Hz |
| Frames per second (fps) |
9 |
| Gigabit Ethernet |
false |
| HDMI-connection |
false |
| Image averaging |
false |
| Increase image size |
false |
| Input voltage AC 50 Hz |
110 - 230V |
| Input voltage AC 60 Hz |
110 - 230V |
| Input voltage DC |
7.2 - 15V |
| Instantaneous field of view (IFOV) |
1.85m rad |
| Internal memory |
true |
| Max. battery duration |
4h |
| MicroSD-card slot |
true |
| MiniSD-card slot |
false |
| Misc Attribute |
FLK-TiS60+ 9HZ |
| Optics |
34.1 °H x 25.6 °H |
| Power Consumption |
5.7W |
| Relative measurement accuracy |
2% |
| SD-card slot |
false |
| Sensor resolution (horizontal) |
320px |
| Sensor resolution (vertical) |
240px |
| Suitable for exchangeable lenses |
false |
| Temperature measuring range |
-20 - 400°C |
| Temperature reading range |
-20 up to 400 °C |
| Temperature reading range (max.) |
400°C |
| Temperature reading range (min.) |
-20°C |
| Thermal image |
true |
| Thermal sensitivity at 30 °C |
0.045°C |
| Thermal-/visual image (in one image) |
true |
| USB connection |
true |
| Video recording |
false |
| Visual image |
true |
| Wave band |
7.5 - 14µm |
| Weight |
0.72kg |
| Wi-Fi-compatible |
true |
| With built-in torch |
false |
| With communication interface RS-232 |
false |
| With communication interface RS-485 |
false |
| With digital alarm |
false |
| With humidity sensor |
false |
| With laser |
true |
| With laser distance measurement |
false |
| With memory function |
true |
| With stand holder |
false |
| With touch screen |
false |
