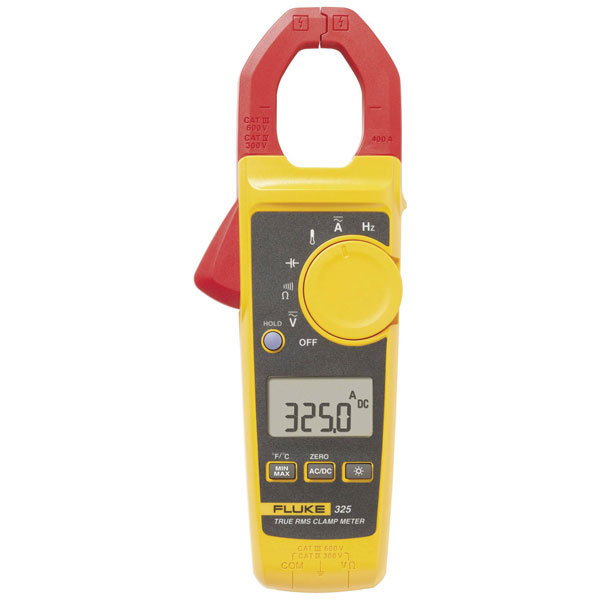

Fluke 4152643-ISO 325 clamp meter handheld multimeter CAT III/IV 4000 counts

Fluke-standard robustness. Fluke reliability. Fluke precision. Real-effective measurements and optimized ergonomics make the 320 series clamp-on ammeters the most important for installation and troubleshooting in industrial and building technology applications. The Fluke 323, 324 and 325 Clamp Meters are used to check circuits, switches, fuses and contacts for the presence of load current, AC voltage or continuity. These compact and robust clamp-on ammeters are Ideal suitable for current measuring up to 400 A in cramped switch cabinets. The Fluke 325 clamp-on ammeter also enables direct current and frequency measurement.

Type	Clamp meter
A AC reading range (min.)	0.01A
A DC reading range (max.)	400A
AC resistance	10MΩ
Amperage reading range AC (max.)	400A
Amperage reading range DC (min.)	0.01A
Basic accuracy	1%
Calibrated to	ISO standards
Current reading	AC/DC
Dc Resistance	10MΩ
Dim	(W x H) 75 mm x 207 mm
Display	Digital
Display (counts)	4000
Frequency Range	45 Hz -400Hz
Frequency reading range	5 Hz - 500Hz
Height	207mm
Interfaces	none
Measurement type (details)	True RMS
Misc Attribute	325
Opening range of current clamps	40mm
Power supply (details)	2 micro batteries (AAA)
Reading category	CAT III 600V/CAT IV 300V
Reading range - capacity	0.1 µF - 1000µF
Reading range - resistance	0.1 Ω - 40000Ω
V AC reading range (max.)	600V
V AC reading range (min.)	0.1V
Voltage DC reading range (max.)	600V
Voltage metering	AC/DC
Voltage reading range DC (min.)	0.1V
Width	75mm
