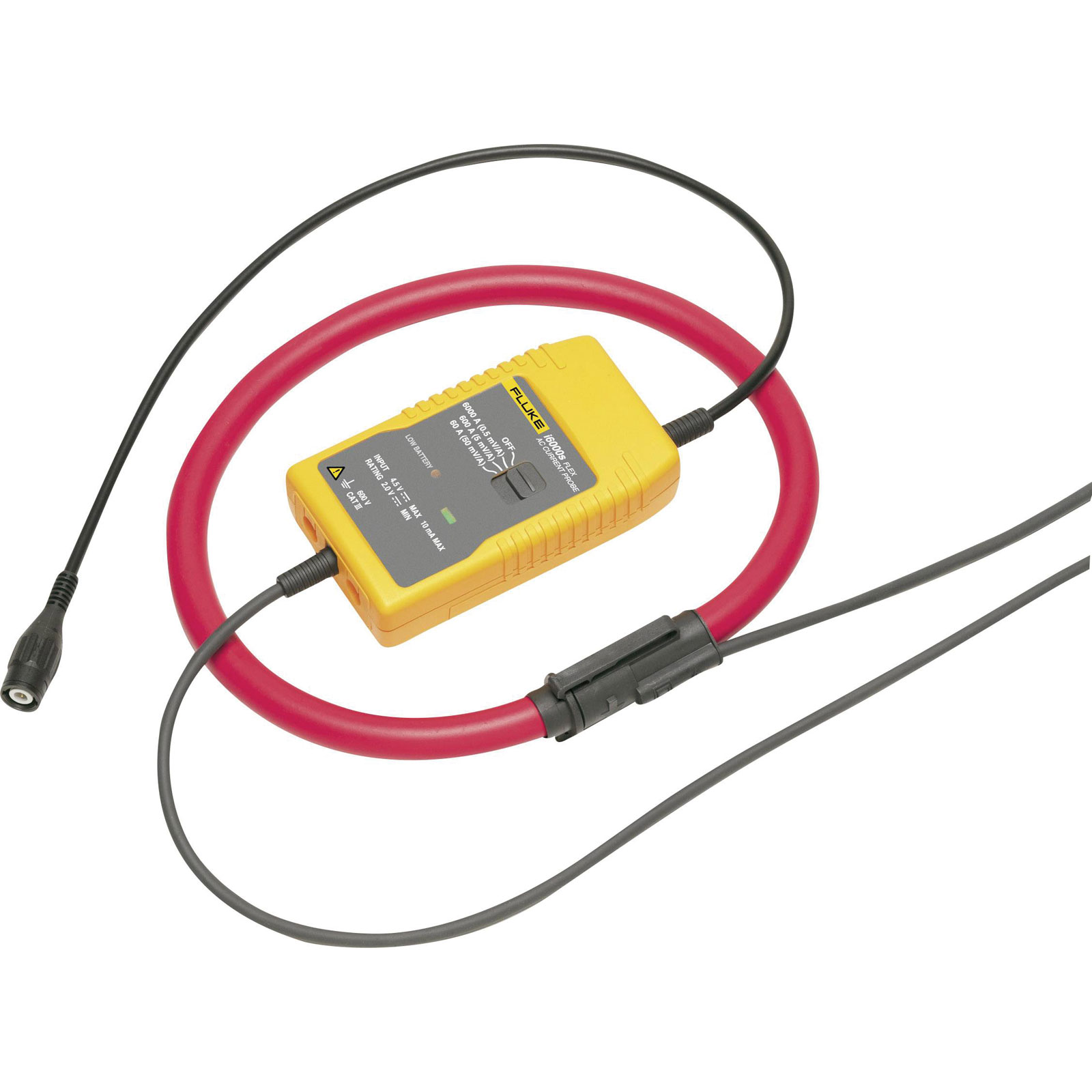

The sflex i6000 is a AC current clamp, after the Rogowski principle works. They can be used in conjunction with oscilloscopes, recorders and data loggers for measurement of currents up to 6000 A. The flexible measuring head in light-weight construction allows a quick and easy installation in difficult to reach areas.
| Type |
Clamp meter |
| A AC reading range (min.) |
6A |
| Amperage reading range AC (max.) |
6000A |
| Analogue bar graph display |
N/A |
| Calibrated to |
Manufacturer's standards (no certificate) |
| Capacitance measurement |
false |
| Continuity test |
false |
| Current measuring range, AC |
1 - 6000A |
| Current measuring range, DC |
N/A |
| Current reading |
AC |
| Degree of protection (IP) |
N/A |
| Dim |
(L x W x H) 30 x 69 x 116 mm |
| Frequency measurement |
false |
| Harmonics measurement |
false |
| Height |
116mm |
| Indication |
N/A |
| Interface |
false |
| Jaw Opening |
178mm |
| Leakage current measuring |
false |
| Length |
30mm |
| Max. voltage measuring circuit category |
600V |
| Measured value memory |
false |
| Measurement in cables with for- and back conductor |
false |
| Measuring circuit category |
CAT III |
| Measuring range selection |
Manual |
| Multiple display |
false |
| Opening range of current clamps |
610mm |
| Power measuring |
false |
| Power supply (details) |
2 AA batteries |
| Reading category |
CAT III 600 V |
| Resistance measuring range |
false |
| Temperature measurement |
false |
| True RMS measurement |
N/A |
| Type B |
BNC plug |
| Type of current |
AC |
| Version as adaptor to connect to multi meter |
true |
| Voltage measurement, AC |
false |
| Voltage measurement, DC |
false |
| Width |
69mm |
| With display backlight |
N/A |
