Fluke 2584935 i30s clamp meter adapter, AC/DC 1 mA-30 A range, UL/CSA approved

Fluke
Order Code:

25-8746

Brand: Fluke MPN: 2584935 EAN-13: 0095969345101
Qty Unit Price (Ex VAT)
1+ £790.16
Price per unit {{ this._page.IncVat ? 'Inc' : 'Ex' }} VAT
6 in stock, despatched in 4 working days

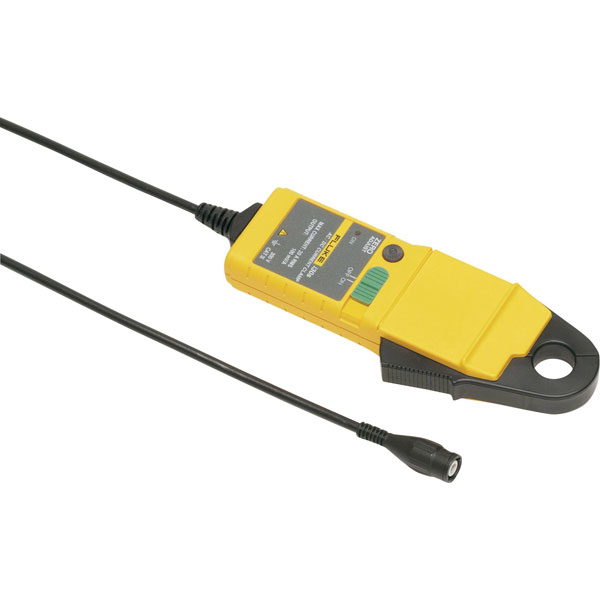

The clamp-on ammeter i 30s uses the Hall effect technology for the measurement of direct and alternating currents. The i 30 s can be used in connection with oscilloscopes and other suitable measuring devices for precise current measurements without interrupting the circuit.
Type Clamp meter
A AC reading range (min.) 1mA
A DC reading range (max.) 30A
Amperage reading range AC (max.) 30A
Amperage reading range DC (min.) 1mA
Analogue bar graph display N/A
Basic Accuracy ±1%
Calibrated to Manufacturer's standards (no certificate)
Capacitance Measurement false
Category CAT III 300 V
Continuity test false
Current measuring range, AC 0.05 - 20A
Current measuring range, DC 0.05 - 20A
Current reading AC/DC
Degree of protection (IP) N/A
Frequency measurement false
Harmonics measurement false
Indication N/A
Interface false
Jaw Opening 19mm
Leakage current measuring false
Max. frequency 100kHz
Max. voltage measuring circuit category 300V
Measured value memory false
Measurement in cables with for- and back conductor false
Measuring circuit category CAT III
Measuring range selection Manual
Multiple display N/A
Opening range of current clamps 19mm
Power measuring false
Power supply (details) 9 V battery
Resistance measuring range false
Temperature measurement false
True RMS measurement N/A
Type B BNC plug
Type of current AC/DC
Version as adaptor to connect to multi meter true
Voltage measurement, AC false
Voltage measurement, DC false
With display backlight N/A
