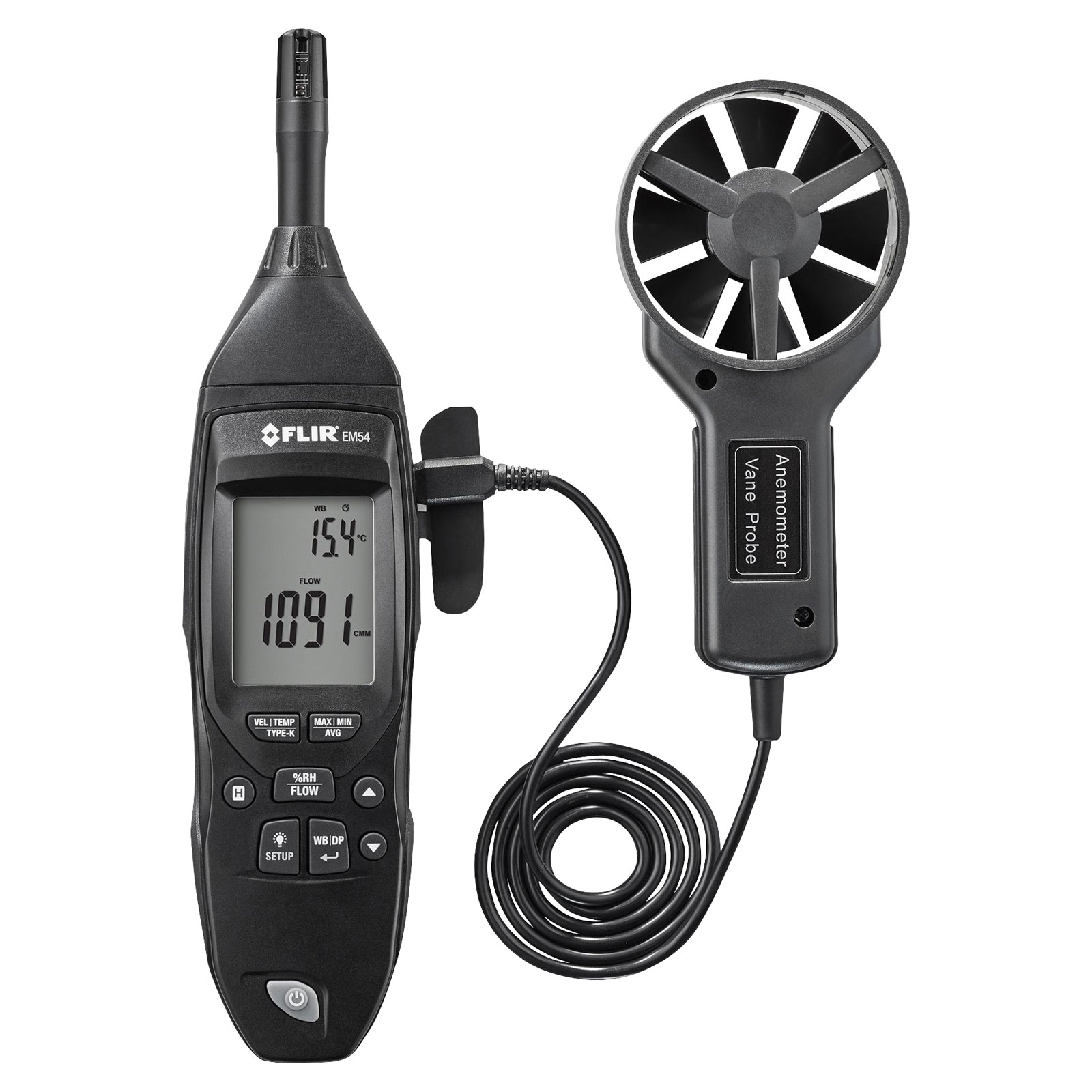

The FLIR EM54 is ideal for inspecting and troubleshooting HVAC/R ducting systems within residential, commercial, and industrial facilities.
The meter can help you verify that duct inlets and outlets have the specified volumetric flow - a prerequisite to an efficient functional system. Featuring humidity, wet bulb, and dew point functions, the EM54 can measure deviations from proper relative humidity levels. Plus, the included Type-K contact temperature probe is useful to check electric motors and thermal equipment components for proper operating temperatures.
Accurate and reliable - receive high-quality data consistently, and work without interruption. Using the tripod, place the meter away from objects that may influence relative humidity measurements
Inspect and troubleshoot efficiently - work on a wide range of systems more efficiently using the contact temperature probe and wet bulb/dew point calculations.
easy to use - intuitively operate this simple, ergonomic meter with a backlit display, a ‘hold' function that freezes readings, and well-marked function keys.
- Measurement performance:
- Air temperature: 10 to 30°C, ±1°C; -30 to 9.9°C and 31 to 60°C, ±2°C
- Dew point: -30 to 60°C, ±3°C
- Temperature type K thermocouple: -99.9 to 99.9°C, ±1.5% +1°C; 100 to 1372°C, ±1.5% +2°C
- Wet bulb (calculated): -30 to 50°C, ±3°C
- Air velocity (vane anemometer probe): 0.4 to 30m/s, ±3% +0.2m/s; 79 to 5906 ft/min, ±3% +40 ft/min; 1.4 to 108km/h, ±3% +0.8km/h; 0.9 to 67.2 mph, ±3% +0.4 mph; 0.8 to 58.3 knots, ±3% +0.4 knots
- Relative humidity: 5% to 98% ±3.5%
- Specification:
- Auto power off (APO): configurable from 5 to 60 min in 8 increments
- Dimensions (L x W x H): 275 x 65 x 45mm (10.8 x 2.6 x 1.8in.)
- Housing material: impact-resistant plastic
- Warranty: limited 3 years
- Weight: 283.9g (10 oz.) with battery installed, no external probes
- Anemometer body length: 150mm (5.9 in.)
- Anemometer cable length: 950mm (37.4 in.)
- Anemometer vane diameter: 70mm (2.8 in.)
- Takes 1x 9V battery
- Includes: vane anemometer probe, type-K thermocouple probe, soft carrying pouch, battery & tripod mount
- FLIR type EM54
| Type |
Environmental meter |
| Accuracy |
±3% |
| Air Velocity Range |
0.4 to 30m/s |
| Display Type |
LCD |
| Operating Temperature |
0 to +50°C |
| Wind Speed Range |
0.4 to 30m/s |
