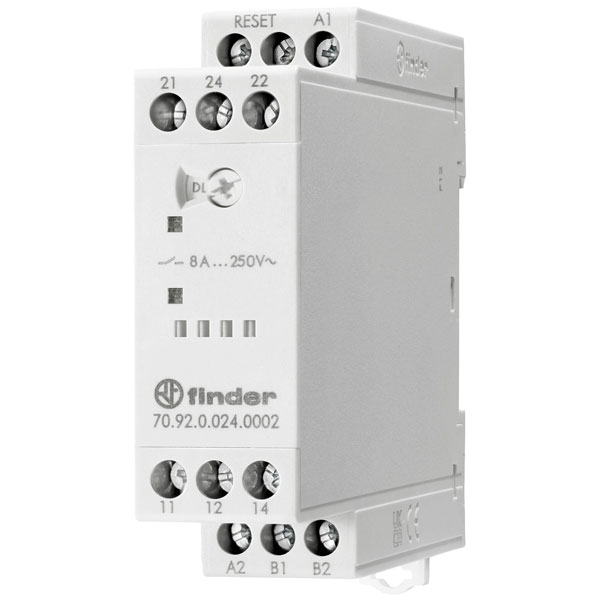

Finder 70.92.0.024.0002 Thermistor overload Relay 24V AC 2 change-overs

Finder manufactures the 70.92.0.024.0002 thermistor overload relay, which operates at 24 V AC and features two change-overs. This monitoring relay is designed to protect motors by detecting temperature increases to prevent overheating. Ideal for use in industrial applications, it ensures reliable and safe motor operation.

Type	Thermistor overload relay
Connection type auxiliary circuit	Screw connection
Contact Material	AgNi
Contact Type	2 change-overs
Depth	104.3mm
Dim	(W x H x D) 22.5 x 86.2 x 104.3 mm
EF002412	24 - 24
Error registration possible	true
External reset possible	true
Height	86.2mm
IP Rating	IP20
Maximum Switching Load	400VA
Maximum Temperature	55°C
Min. temperature	-20°C
Number of contacts as change-over contact	2
Number of contacts as normally closed contact	0
Number of contacts as normally open contact	0
Number of measuring circuits	1
Operating Voltage	24V AC
Switching current (max.)	8A
Switching voltage (max.)	400V AC
Voltage type for actuating	AC/DC
Width	22.5mm
With detachable clamps	false
