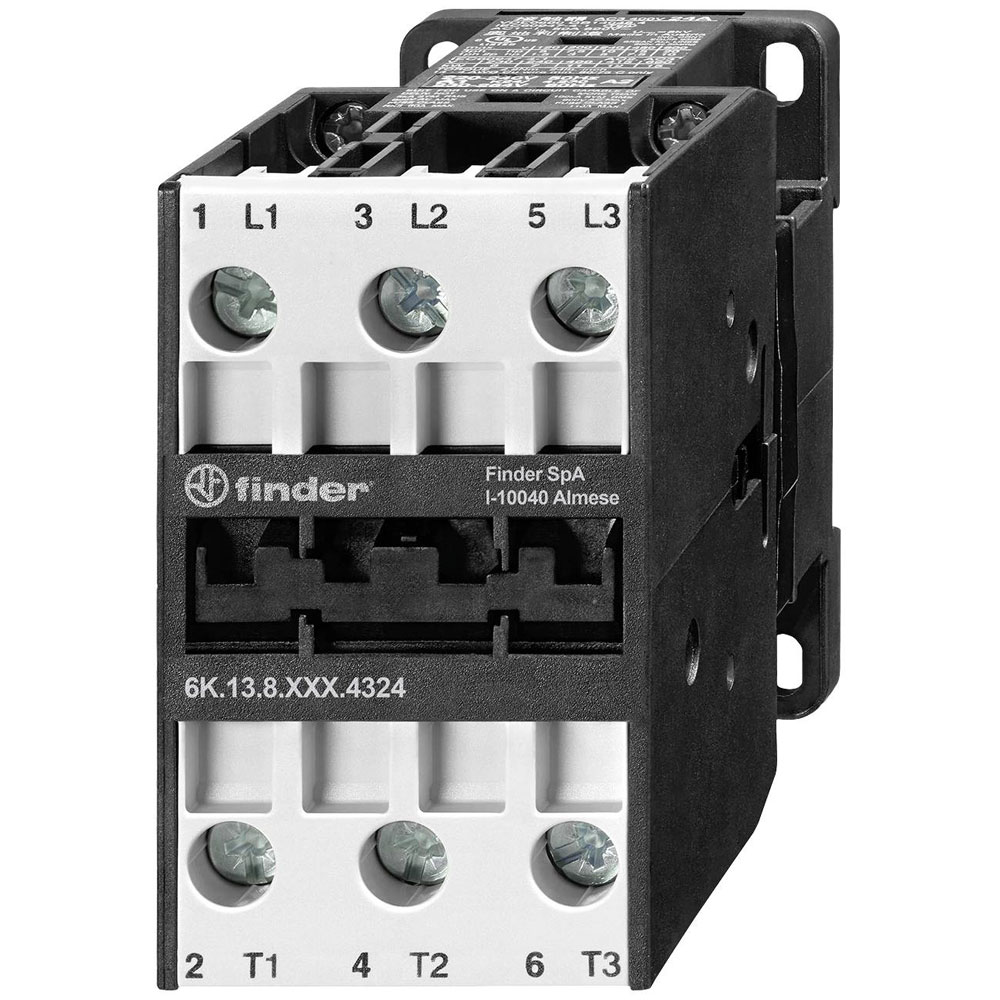

Finder 6K.13.8.024.4332 industrial Relay 15 kW 24 V AC 32 A IP 20

Finder
Order Code:

03-4362

Brand: Finder MPN: 6K.13.8.024.4332 EAN-13: 8012823450308
Qty Unit Price (Ex VAT)
1+ £49.33
Price per unit {{ this._page.IncVat ? 'Inc' : 'Ex' }} VAT
2 in stock, despatched in 4 working days

The Finder 6K.13.8.024.4332 is an industrial relay designed for heavy-duty use with a power rating of 15 kW and operates on 24 V AC with a current capacity of 32 A. Manufactured by Finder, this contactor is suitable for controlling electrical circuits in industrial settings. It's ideal for applications requiring reliable switching of motors or other high-power electrical loads.
Type Industrial relay
Coil Voltage 24V AC
Contact Current Rating 32A
Contact Material AgSnO2
Contact Type 3 makers
Current load 32A
Depth 83.50mm
Dimensions (W x H x D) 45 x 74 x 83.50 mm
Height 74mm
IP Rating IP20
Max. temperature +70°C
Min. temperature -40°C
Number of auxiliary contacts as normally closed contact 1
Number of auxiliary contacts as normally open contact 1
Number of normally closed contacts as main contact 3
Number of normally open contacts as main contact N/A
Power 15kW
Power Rating 15
Rated control supply voltage AC 50 Hz 24 - 24V
Rated control supply voltage AC 60 Hz 24 - 24V
Rated operation current Ie at AC-1, 400 V N/A
Rated operation current Ie at AC-3, 400 V 32A
Rated operation current Ie at AC-4, 400 V 32A
Rated operation power at AC-3, 400 V 15kW
Rated operation power at AC-4, 400 V 15kW
Rated operation power NEMA N/A
Suitable for distribution board true
Type of electrical connection of main circuit Rail connection
Voltage type for actuating AC
Width 45mm
