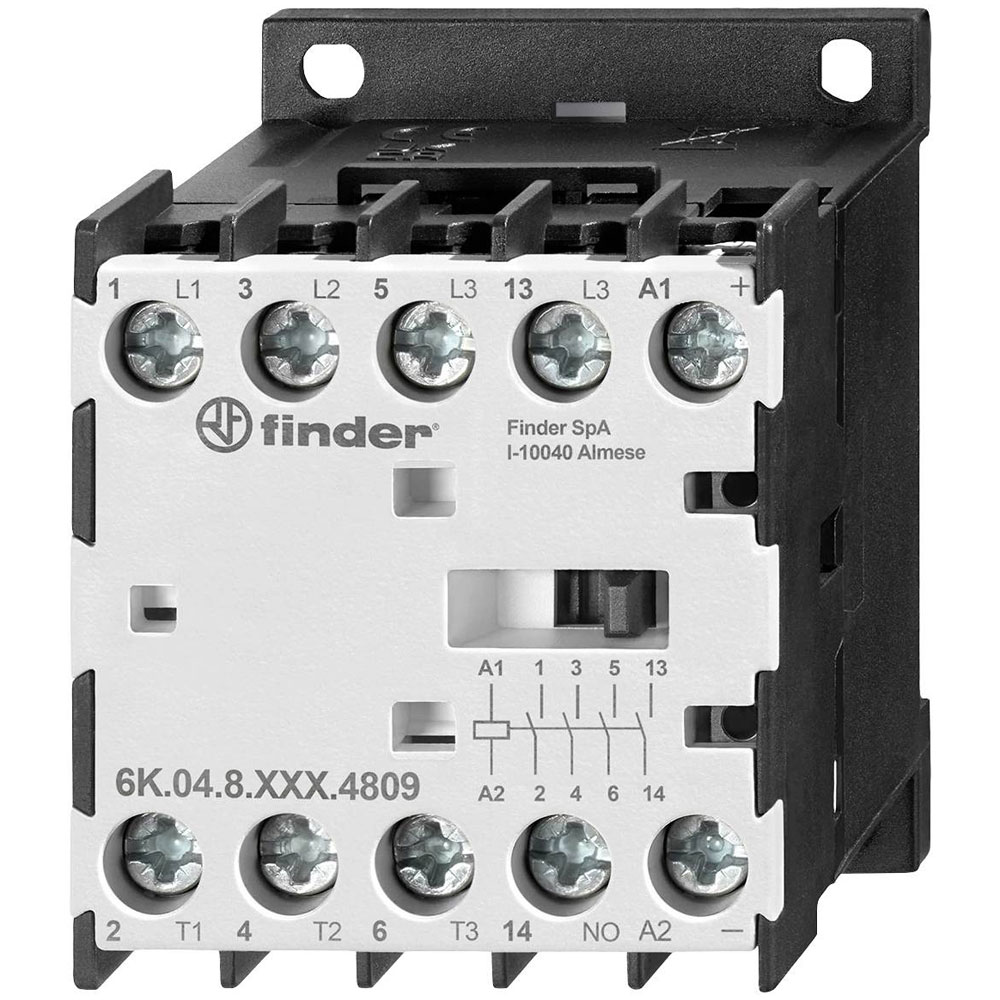

Finder 6K.04.8.230.4309 mini contactor 230V AC 4kW 35mm Rail mount

The Finder 6K.04.8.230.4309 Industrial relay is a robust electrical contactor with a capacity of 4 kW, suitable for operation at 230 V AC and 9 A. Manufactured by Finder, this relay is built to provide reliable switching in various industrial applications. It is commonly used in circuits requiring power control and management within manufacturing processes.

Type	Industrial relay
Coil Voltage	230V AC
Contact Current Rating	9A
Contact Material	AgSnO2
Contact Type	4 makers
Current load	9A
Depth	45mm
Dimensions	(W x H x D) 45 x 57.50 x 45 mm
Height	57.50mm
IP Rating	IP20
Maximum Temperature	+70°C
Min. temperature	-40°C
Number of auxiliary contacts as normally closed contact	1
Number of auxiliary contacts as normally open contact	1
Number of normally closed contacts as main contact	4
Number of normally open contacts as main contact	N/A
Power	4kW
Power Rating	4
Rated control supply voltage AC 50 Hz	230 - 230V
Rated control supply voltage AC 60 Hz	230 - 230V
Rated operation current Ie at AC-1, 400 V	N/A
Rated operation current Ie at AC-3, 400 V	9A
Rated operation current Ie at AC-4, 400 V	9A
Rated operation power at AC-3, 400 V	4kW
Rated operation power at AC-4, 400 V	4kW
Rated operation power NEMA	N/A
Suitable for distribution board	true
Type of electrical connection of main circuit	Rail connection
Voltage type for actuating	AC
Width	45mm
