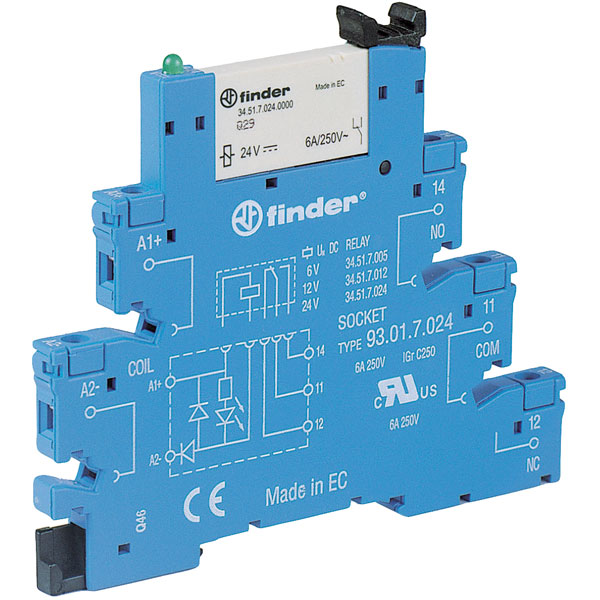

Finder 38.51.0.024.0060 Inteface Relay Module 24VAC/DC 6A SPCO Screw Terminals

An AC/DC SPCO relay interface module with a coil voltage of 24V, AgNi + Au contacts and screw terminals. Suitable for a variety of applications such as industrial automation, air conditioning systems, automatic gates, elevators, etc.

• 35mm Rail mounting
• Instant removal of relay using plastic retaining clip
• CSA, UL VDE approvals

Type	Relay component
Coil Current	6A
Coil Voltage (DC)	24
Complete with socket	true
Contact Configuration	SPDT-CO
Degree of protection (IP)	IP20
Depth	72.1mm
Drive, polarization	Polarity free
Drive, switching attitude	Mono stable
Height	75.6mm
IP Rating	IP20
Length	87.9mm
Material contact	Other copper alloys
Material of contact insert	Thermoplastic
Material of contact surface	Untreated
Maximum Temperature	+70°C
Min. temperature	-40°C
Mounting Type	Rail
Nominal Current	6A
Number of contacts as change-over contact	1
Number of contacts as normally closed contact	0
Number of contacts as normally open contact	0
Operating Temperature	-40 to +70°C
Rated control supply voltage AC 50 Hz	24 - 24V
Rated control supply voltage AC 60 Hz	24 - 24V
Rated control supply voltage DC	24 - 24V
Switching Current Max	6A
Switching Power	1500VA
Switching Voltage Max (AC)	400
Type of electric connection	Screw connection
Type of switch contact	Single contact
Voltage type for actuating	AC/DC
Width	6.2mm
With detachable clamps	false
With forced-guided contacts	false
With LED indication	true
