Finder 22.64.0.230.4710 Relay IP20

Image Representative of Range

Finder 22.64.0.230.4710 Relay IP20

Finder
Standard range
Order Code:

49-4385

Brand: Finder MPN: 22.64.0.230.4710 EAN-13: 8012823376516
Qty Unit Price (Ex VAT)
1+ £83.13
Price per unit {{ IncVat ? 'Inc' : 'Ex' }} VAT
34 in stock, despatched in 4 working days

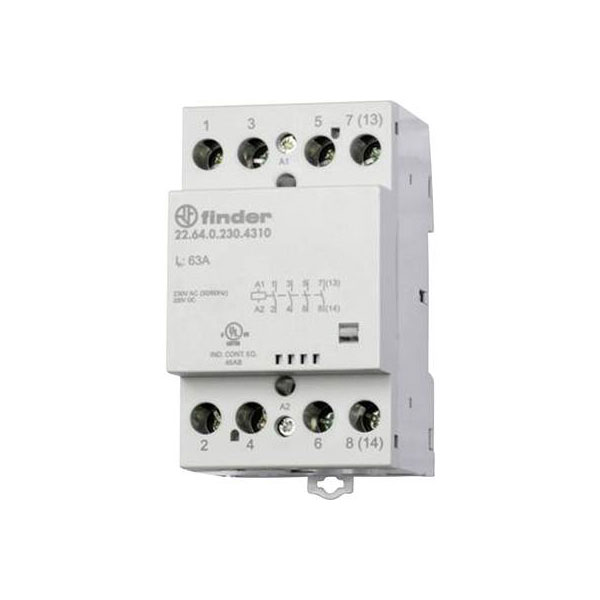

This Finder 63A Modular Contactor Relay is from the 22 Series. The relay is supplied with the 230V coil voltage and 3 NO +1 NC contact configurations. The relay has a protective separation (reinforced insulation) between coil and contacts and is 35mm DIN rail mountable. The relay is ideal for high inrush current loads up to 240A.


  • Voltage: 230V
  • Nominal current: 63A
  • Switching voltage: 1000mW
  • Protection type: IP20
  • Ambient temperature: -5°C to +55°C
  • Dielectric strength: 2000V AC
  • Contact type: 3 NO + 1 NC
  • Switch-on current: (10 ms) 300A
  • Dimensions: 63.1(W) x 95.8(H) x mm
  • Manufacturer's part: Finder 22.64.0.230.4710
Type Relay
Contact Configuration 3NO + 1NC
Dimensions 95.8 x 53.5 x 63.1mm
Operating Voltage (AC) 240 to 440V
Operating Voltage (DC) 230V
Output Current 63A
Temperature range -5 to +55°C
