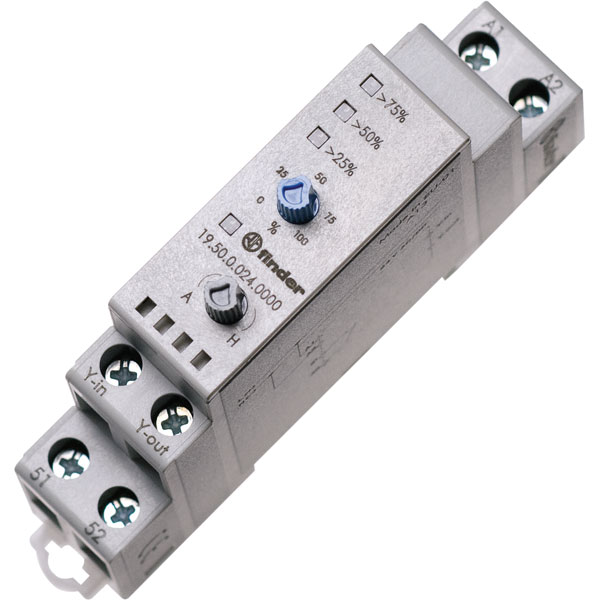

Finder 19.50.0.024.0000 Analogue Value Generator 0-10V

Finder
MPN
19.50.0.024.0000
Brand
Finder
EAN-13
8012823336435
Order Code
49-2995
Country of Origin
Italy

Discontinued


This Finder Override and Status indicating module is frrom the 19 Series. This relay is also known as intervention module. With the use of carefully installed intervention modules, a trained caretaker or security guard can be in a position to recognise any interruptions in service and by manual intervention perform the necessary override actions to maintain system operation until a repair can be effected.

The Analogue output module (0 to 10V) (Type 19.50) can be installed where there is need to give a manually adjustable analogue signal (0 to 10V) priority over an analogue signal from a electronic control unit or PLC, or to override and replace a malfunctioning signal.


  • 35mm rail (EN 60715) mounting
  • LED indication
  • Positive safety logic (healthy conditions - output relay energised)
  • Ambient temperature: -20°C to +50°C
  • Contact type: SPST-NO
  • Dimensions, height: 60.8mm
  • Dimensions, width: 17.5mm
  • Operating voltage: 24V DC/AC
  • Protection type: IP20
  • Specification: Analogue value generator 0 to 10V
  • Switching current: (Feedback, AC/DC) 10/100mA
  • Switching voltage: (Feedback) 24 V DC/AC
  • Manufacturer's part: Finder 19.50.0.024.0000
Analogue inputs configurable false
Analogue outputs configurable true
Appendant operation agent (Ex ia) N/A
Appendant operation agent (Ex ib) N/A
Depth 56.5mm
Dimensions height: 60.8mm
Display Potentiometer
Explosion safety category for dust N/A
Explosion safety category for gas N/A
Height 84mm
Input signal, configurable false
Input, current false
Input, resistance thermometer false
Input, resistor false
Input, thermocouple false
Input, voltage true
Number of Analogue Inputs 1
Number of Analogue Outputs 1
Operating Voltage 250-400V
Output signal configurable true
Output, current false
Output, voltage true
Outputs Analogue
Performance level according to EN ISO 13849-1 N/A
Resolution of the analogue inputs N/A
Resolution of the analogue outputs N/A
SIL according to IEC 61508 N/A
Suitable for safety functions false
Type of electric connection Screw connection
Width 17.5mm
