Fibox PC 17/16 - LC3 CARDMASTER Series Polycarbonate Enclosure 160x166x80mm

Fibox
Extended range
Order Code:

30-2326

Brand: Fibox MPN: PC 17/16-LC3 enclosure EAN-13: 6418074039309
Qty Unit Price (Ex VAT)
4+ £44.32
Price per unit {{ IncVat ? 'Inc' : 'Ex' }} VAT
Order in multiples of 4
Available to back orderBack-order availability date - 26/05/2025

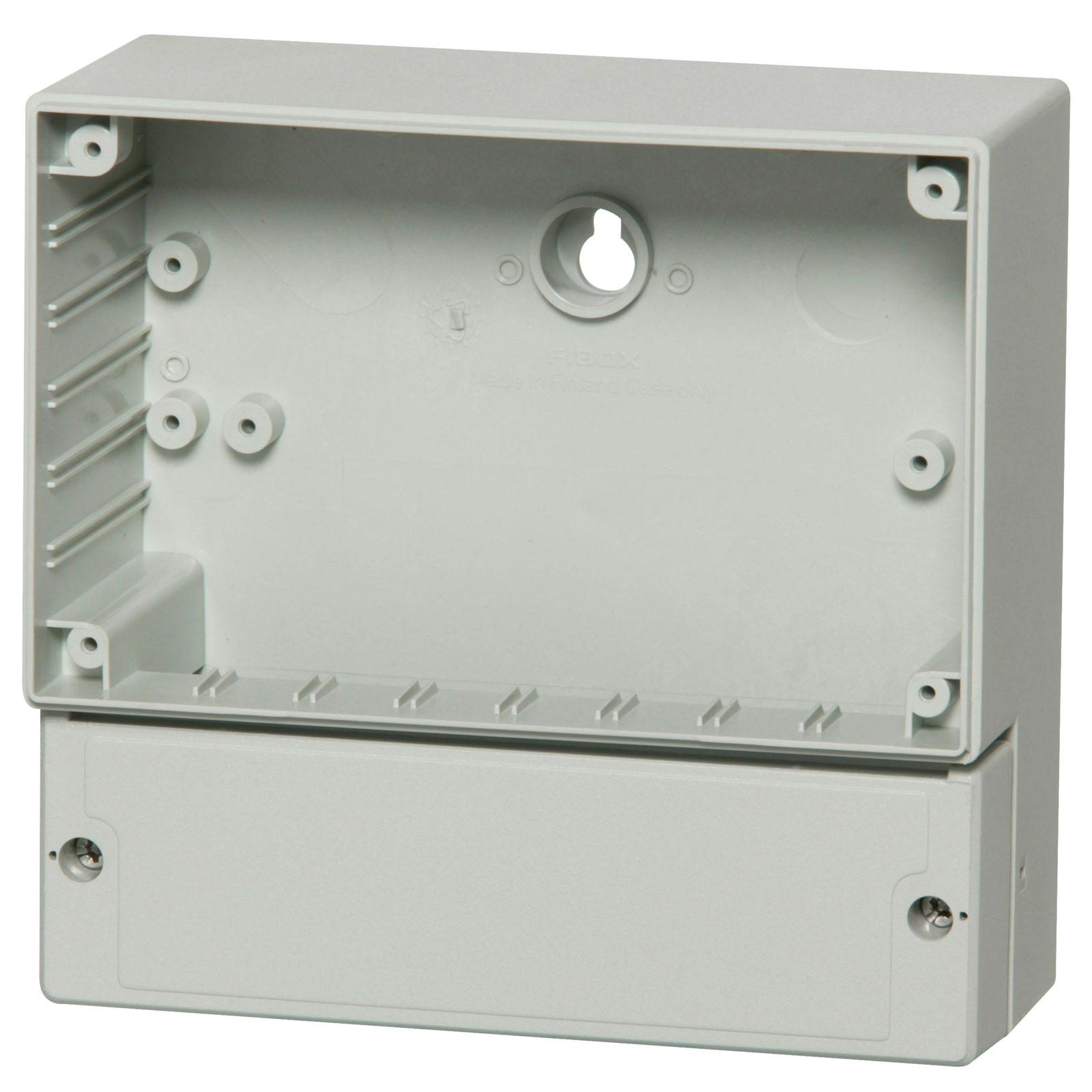

Fibox 7520104 - A grey enclosure from the Fibox CARDMASTER series, measuring 160 x 166 x 80mm and supplied with base, terminal compartment cover with EPDM gasket and screws for mounting plate/DIN rail.
  • Made from grey (RAL 7035) polycarbonate material
  • IP65 rating
  • Flammability rating: UL 94 HB
  • NEMA Class: NEMA 1, 3, 3R, 12, 13
  • UV resistance: UL 508
  • 166 x 160 x 80mm (L x W x H)
  • Manufacturer's part PC 17/16-LC3




Colour Grey
Enclosure Height 80mm
Enclosure Length 160mm
Enclosure Width 166mm
External Features Front plate
Internal Features N/A
Material Polycarbonate
Finish N/A
Flame Resistance UL 746C 5V
IP rating IP65
Type General purpose polycarbonate
