Fibox 8120122 ARCA 302015W 300x200x150mm Cabinet PC

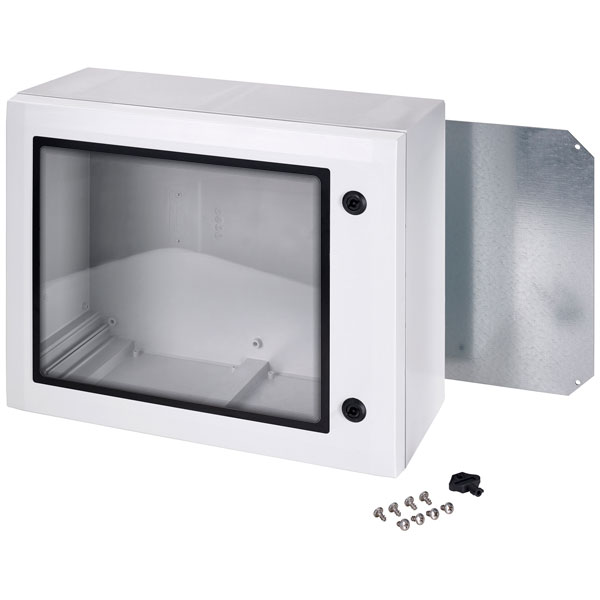

Fibox 8120122 ARCA 302015W 300 x 200 x 150mm Cabinet PC - Cabinet base. door with PUR gasket. mounting plate. screws for mounting plate. 3mm double bit lock(s) with key. S versions with swinghandle 2-point locking system. Door guide included.

Dimensions :

• Height (mm) : 300
• Width (mm) : 200
• Depth (mm) : 150
• Height (inch) : 11.81
• Width (inch) : 7.87
• Depth (inch) : 5.91

Materials :

• Material : Polycarbonate
• Base colour : RAL_7035
• Cover colour : Clear transparent
• Gasket material : Polyurethane

Temperatures :

• Temperature °C : -40 … 80
• Temperature °F : -40 … 175

Ratings :

• Standards EN_62208:2011__IEC_62208:2011, EN_61439-1:2011__IEC_61439-1:2011, EN_61439-4:2013__IEC_61439-4:2012
• Ingress Protection (EN 60529): IP65
• Impact Resistance (EN 62262): IK08
• Electrical insulation : Totally insulated
• Halogen free (DIN/VDE 0472, Part 815) : Yes
• UV resistance : UL 746C
• Flammability Rating : UL 94 5VA
• Glow Wire Test (IEC 60695): 960C
• Strong
• Secure
• Quick Assembly
• Recyclable
• Light Weight
• Pole or Wall Mounting
• With Window

Type	Cabinet
Material	Polycarbonate
Enclosure Width	200mm
Enclosure Height	300mm
Colour	Grey
Internal Features	Polyurethane gasket
External Features	Clear Transparent
Flame Resistance	UL746C
