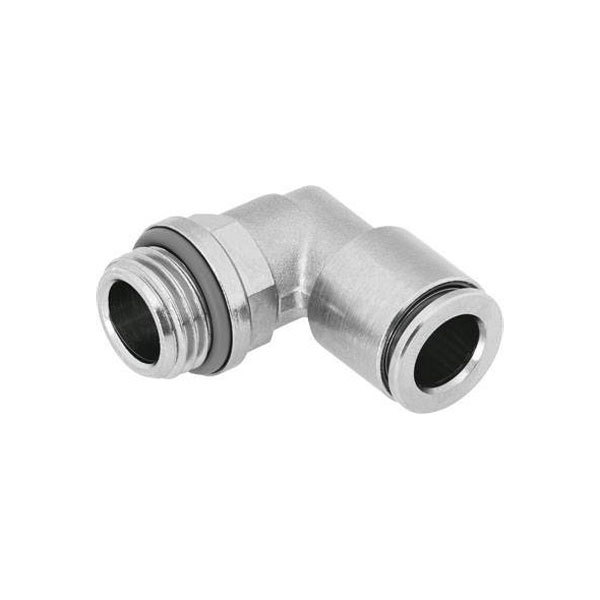

FESTO 578291 Screw Fastener G1/2" thread 20 bar sealing ring

The Festo Screw Fastener NPQH-L-G12-Q10, model number 578291, features an external thread of G1/2" and operates under pressures from -0.95 up to 20 bar. This fastener is typically used in pneumatic systems for secure and reliable connections. Ideal for industrial applications, it ensures durability and stability in various settings.

Type	Screw fastener
Connection	G1/2, for hose 10 mm outer diameter
External thread	G1/2"
Material (details)	Nickel-plated brass, FPM
Max. operating pressure	20bar
Misc Attribute	Corrosion resistance class KBK: 3-strong corrosion stress
Operating medium	Compressed air according to ISO 8573-1:2010 [7:-:-]
Operating pressure (min.)	-0.95bar
Pressure Range	-0.95 up to 20 bar
