FCI 76347-403LF DUBOX Crimp Contact AWG 22-30, 1 Pin, 1 pc

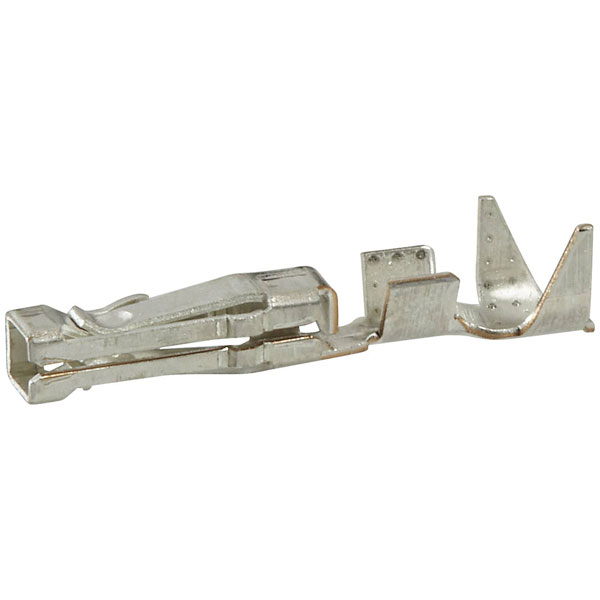

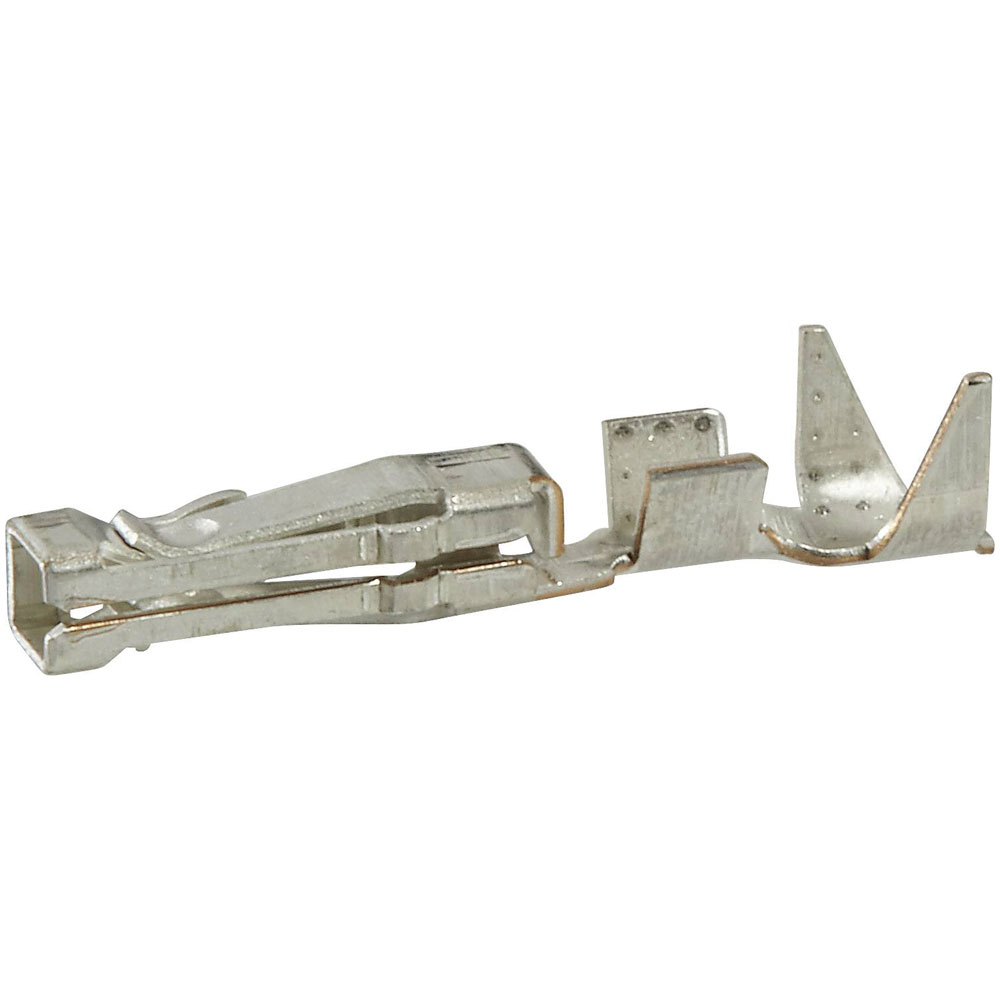

Image Representative of Range

FCI 76347-403LF DUBOX Crimp Contact AWG 22-30, 1 Pin, 1 pc

FCI
Order Code:

11-8252

Brand: FCI MPN: 76347-403LF EAN-13: 2050003816571
Qty Unit Price (Ex VAT)
50+ £0.157
Price per unit {{ this._page.IncVat ? 'Inc' : 'Ex' }} VAT
Order in multiples of 1
917 available to back orderBack-order availability date - 15/01/2026

Manufactured by FCI, the 76347-403LF crimp contact is designed for use with DUBOX connectors and supports wire sizes AWG 22-30. This single-pin contact ensures reliable electrical connections. It is commonly used in telecommunications and data communication systems.
Type Crimp contact
Number of Rows 1
AWG 22
AWG (min.) 30
Colour Silver
Connection Crimp
Connector contact surface Tin plated
Connector system wire-to-board
Connector Type Socket, straight
Contact Material Phosphor bronze
Dimensions (L x W) 16.74 mm x 1.60 mm
Industrial packaging No
Length 16.74mm
max. cross section 0.33mm²
Max. temperature +125°C
Min. cross section 0.05mm²
Min. temperature -40°C
Nominal Current 3A
Nominal current - rounded value 3A
Pins per row 1
Series DUBOX
Total number of pins 1
Width 1.60mm
