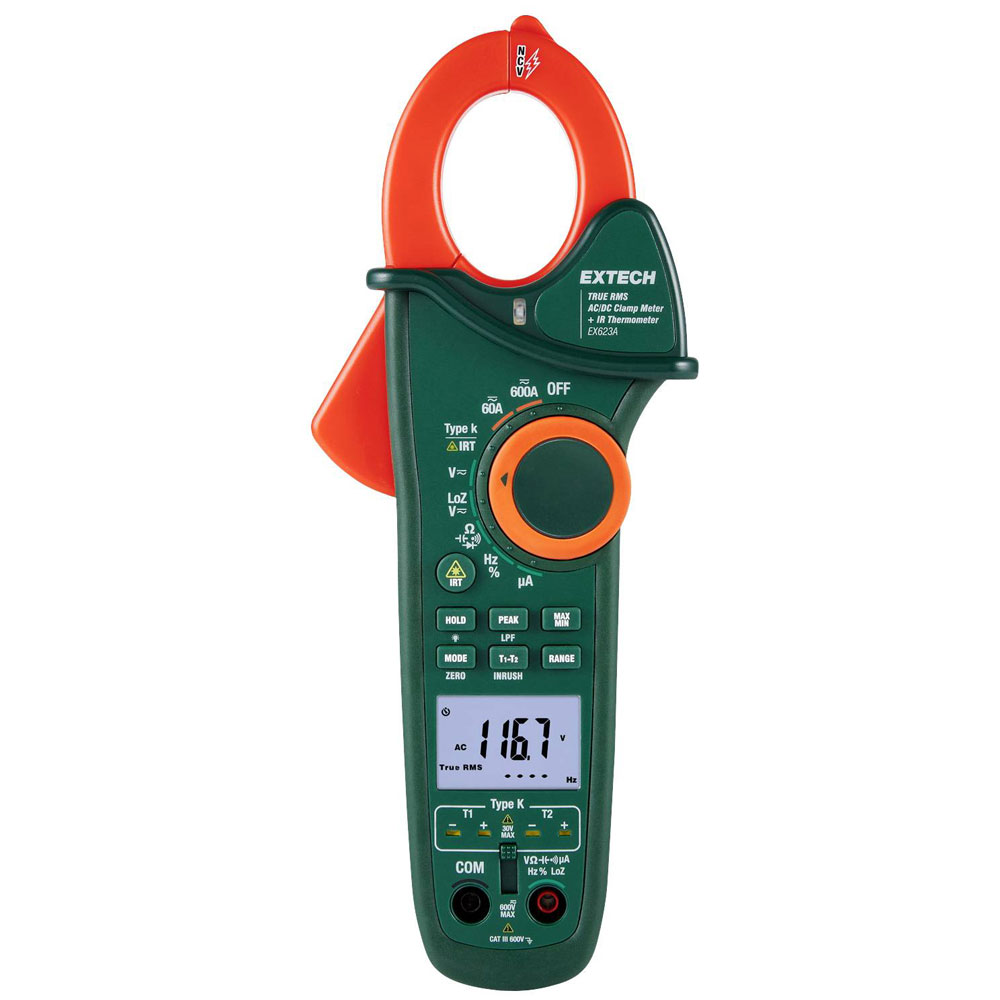

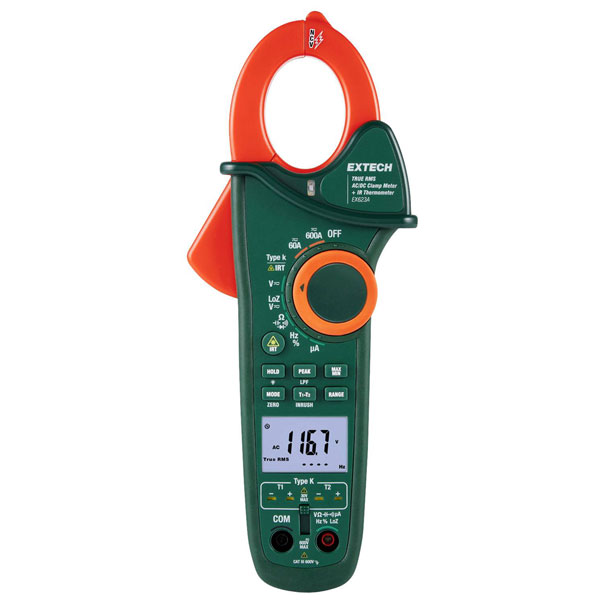

The Extech EX623A is a digital clamp meter with a built-in IR thermometer, rated for CAT III 600 V. It is capable of measuring voltage, current, and frequency with 6000 display counts. This device is suitable for electrical professionals who need a reliable multipurpose tester for various diagnostic applications.
| Type |
Clamp meter |
| A AC reading range (min.) |
0.01A |
| A DC reading range (max.) |
600A |
| Amperage reading range AC (max.) |
600A |
| Amperage reading range DC (min.) |
0.01A |
| Calibrated to |
Manufacturer's standards (no certificate) |
| Current reading |
AC/DC |
| Dim |
(L x W x H) 45 x 96 x 241 mm |
| Display |
Digital |
| Display (counts) |
6000 |
| Displays |
40 000 Counts |
| Frequency reading range |
0.001 Hz -40MHz |
| Height |
241mm |
| Length |
45mm |
| Measurement type (details) |
True RMS |
| Misc Attribute |
Extech EX623A |
| Opening range of current clamps |
32mm |
| Power supply (details) |
9 V battery pack |
| Reading category |
CAT III 600 V |
| Reading range - capacity |
0.01 nF - 40mF |
| Reading range - resistance |
0.1 Ω - 40MΩ |
| Resolution |
10mA |
| Temperature |
-50 to +1000°C |
| Temperature reading range (max.) |
+1000°C |
| Temperature reading range (min.) |
-50°C |
| V AC reading range (max.) |
600V |
| V AC reading range (min.) |
0.1mV |
| Voltage DC reading range (max.) |
600V |
| Voltage metering |
AC/DC |
| Voltage reading range DC (min.) |
0.1mV |
| Weight |
315g |
| Width |
96mm |
