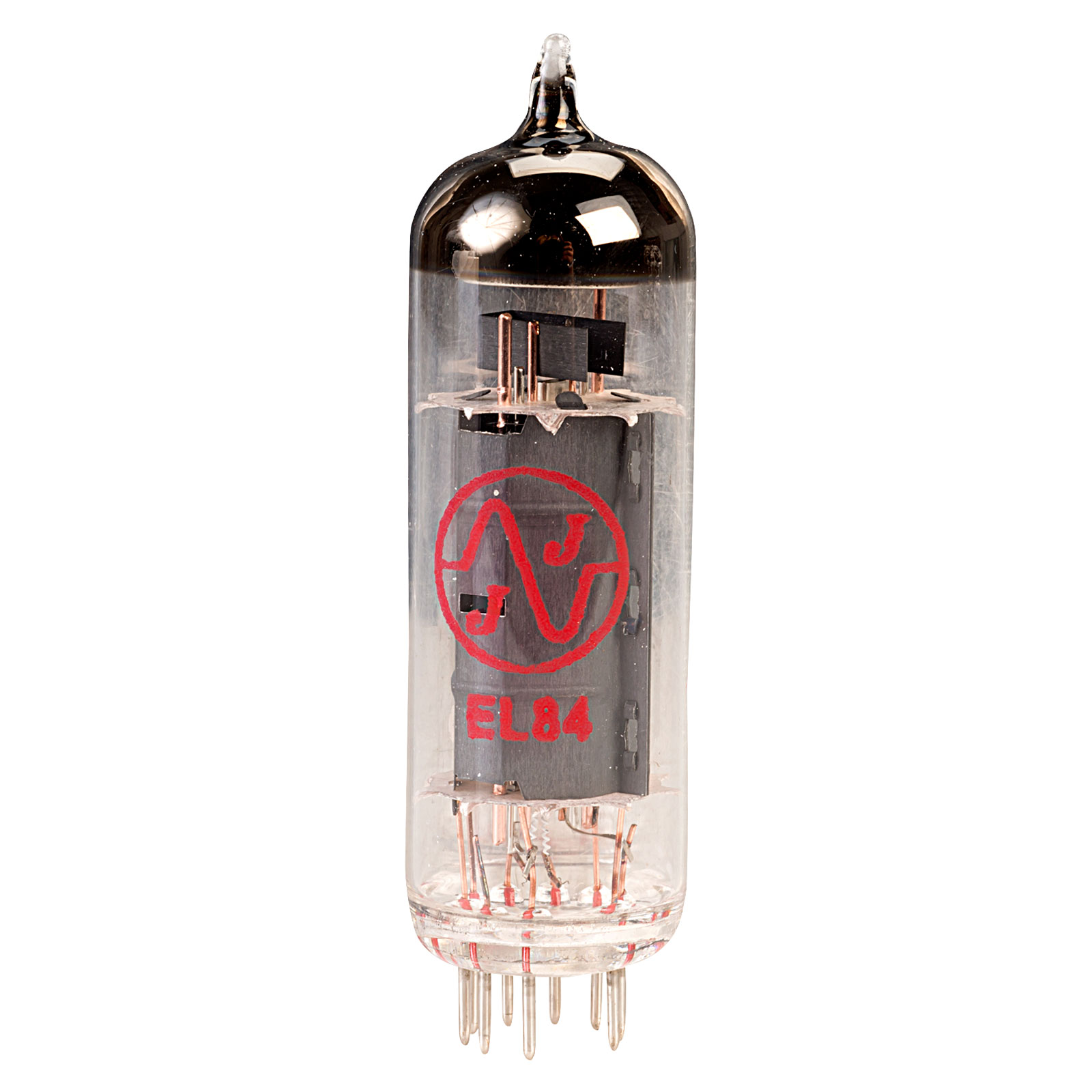

Edicron EL84 (JJ) Pentode Valve

A small to medium output pentode valve housed in a standard B9A envelope, and intended for ultra-linear, push-pull operation or single-ended output. In push-pull Class AB1 mode the output can be up to 17W, and for single-ended Class A output is just a few watts.

Widely used for both audio and guitar applications, and manufactured for Edicron by JJ.

• Single valve

Type	B9A pentode valve
Anode Current	48mA
Anode Voltage	300V
Application	Output stages of audio and guitar amplifiers
Base	B9A, Noval
Diameter	22mm
Heater Current	760mA
Heater Voltage	6.3
Height	71.4mm
