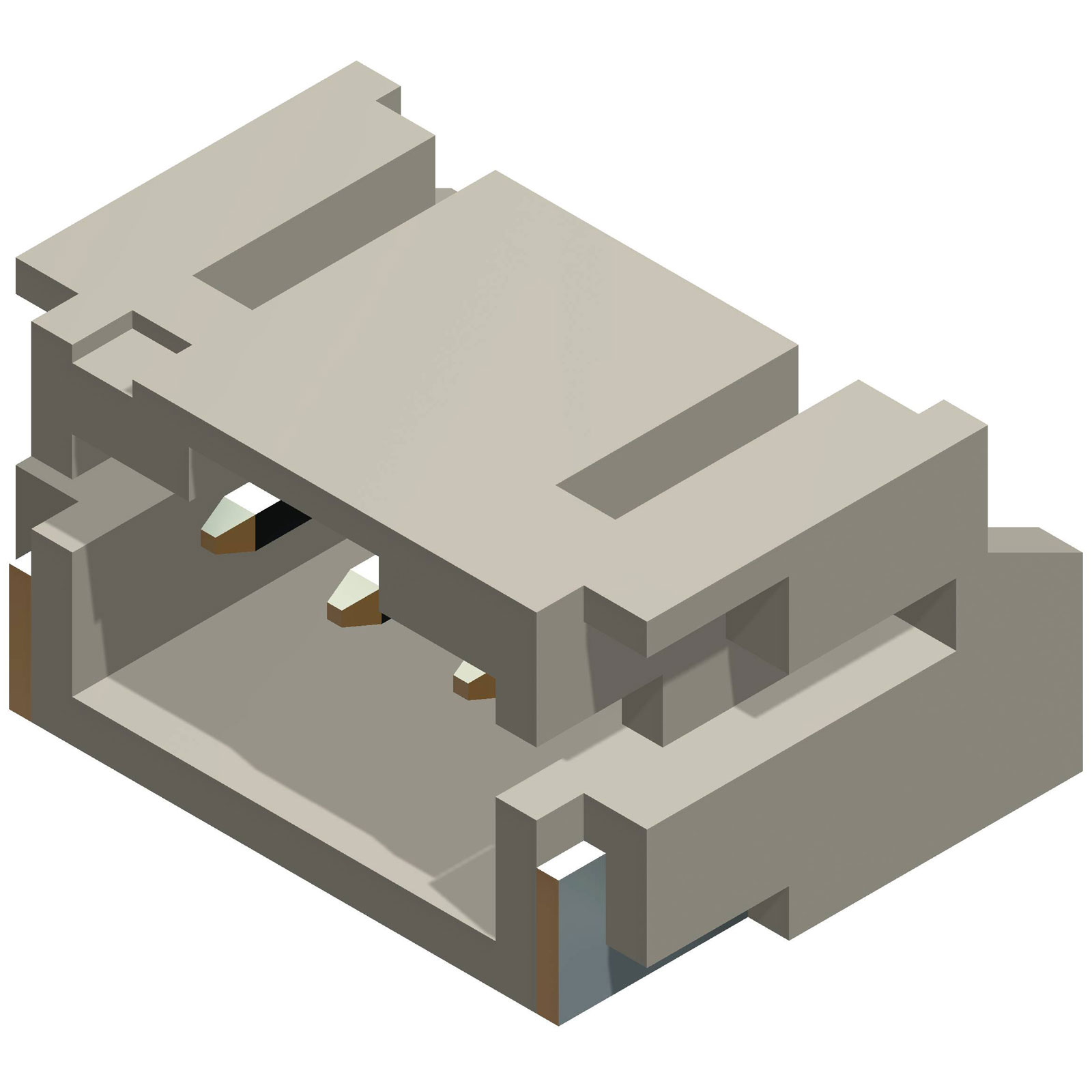

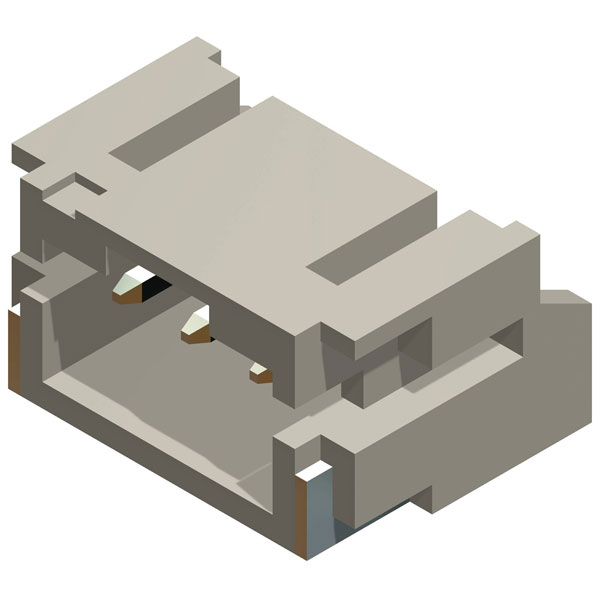

EDAC 140-503-417-060 Pin Housing PCB 3 Pins 2mm Contact Spacing

The EDAC 140-503-417-060 Pin housing PCB features three pins with a contact spacing of 2 mm, suited for secure connections. Manufactured by EDAC, this component is ideal for compact and efficient electronic systems. Typical applications include automotive, telecommunications, and consumer electronics where reliable connections are essential.

Type	Pin housing PCB
Number of Positions	3
Case Material	PA 9T UL94V-0
Colour	Beige
Connector orientation	Parallel (to the PCB)
Connector System	wire-to-board
Cross Section	2mm
Maximum Temperature	+85°C
Min. temperature	-25°C
Nominal Current	2A
Nominal Voltage	100V DC/AC
Pins per row	3
