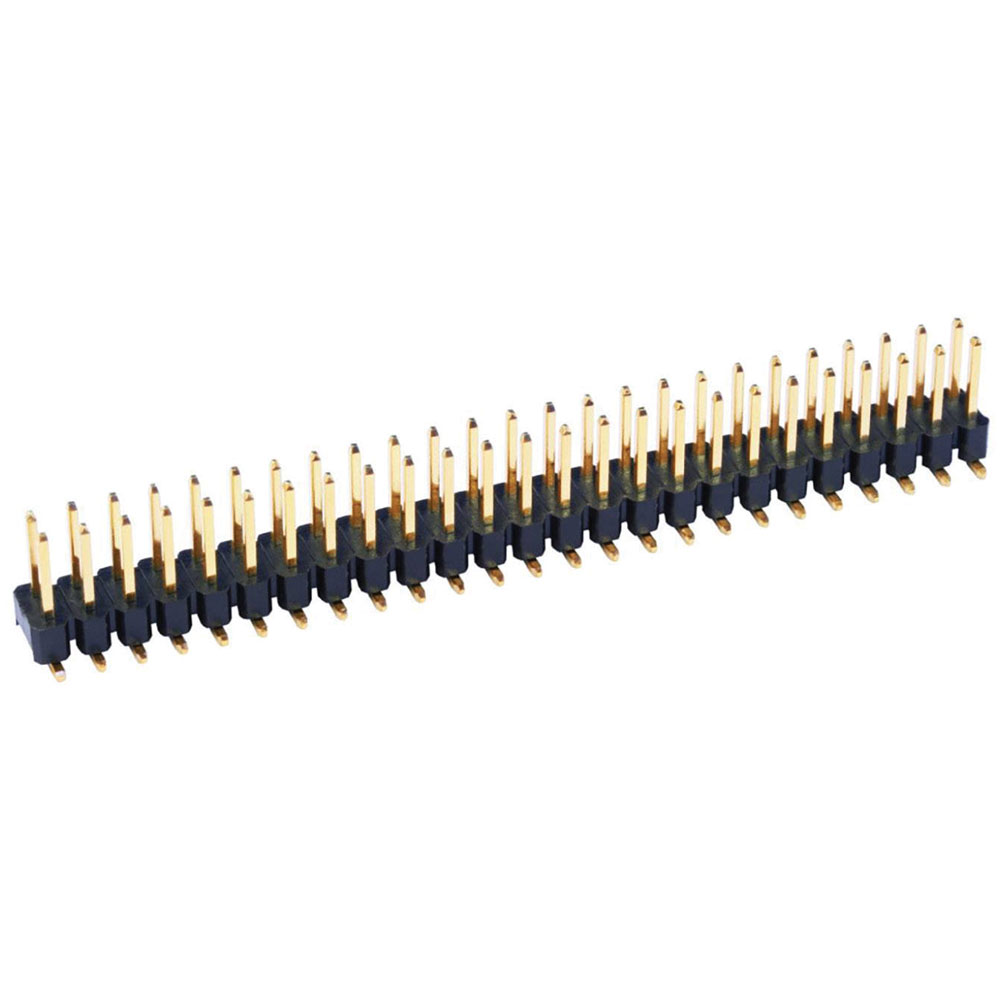

econ connect SMZ40GTOD Pin Strip 2 rows 20 pins per row 1pc

Image Representative of Range

econ connect SMZ40GTOD Pin Strip 2 rows 20 pins per row 1pc

econ connect
Standard range
Order Code:

02-7679

Brand: econ connect MPN: SMZ40GTOD
Qty Unit Price (Ex VAT)
1+ £0.832
Price per unit {{ IncVat ? 'Inc' : 'Ex' }} VAT
1,038 in stock, despatched in 4 working days

econ connect manufactures the SMZ40GTOD pin strip with two rows and 20 pins per row, providing reliable connectivity options. This standard pin strip is commonly used in electronic circuit assemblies and prototyping. It is ideal for use in various PCB applications due to its versatile design and secure connections.
Board contact surface Gold plated
Connection SMT
Connection angle 180°
Connector contact surface Gold plated
Connector orientation Perpendicular (to the PCB)
Connector system wire-to-board
Connector type Pin strip, straight
Contact material Copper alloy
CS 2.54mm
Factory colour Black
Insulation material Nylon according to UL94V0
Manufacturer part # SMZ40GTOD
Max. temperature 105°C
Min. temperature -40°C
Misc Attribute SMZ40GTOD
No. of rows 2
Nominal current 3A
Nominal current - rounded value 3A
Pin shape Square
Pins per row 20
RoHS-compliant Yes
Total number of pins 40
Type Pin strip (standard)
