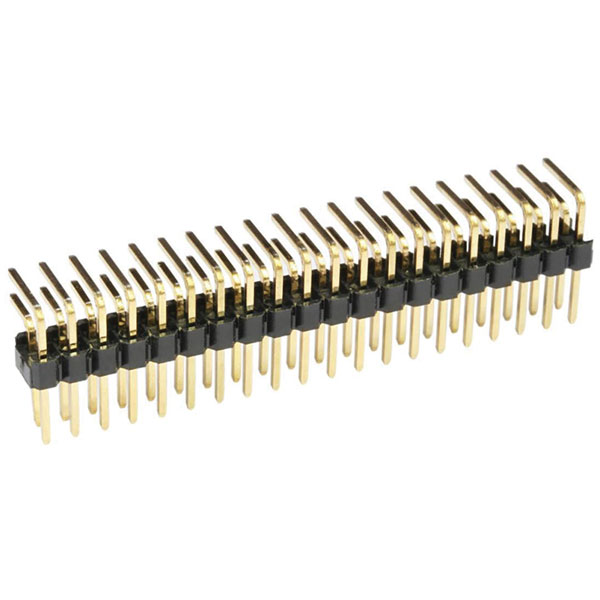

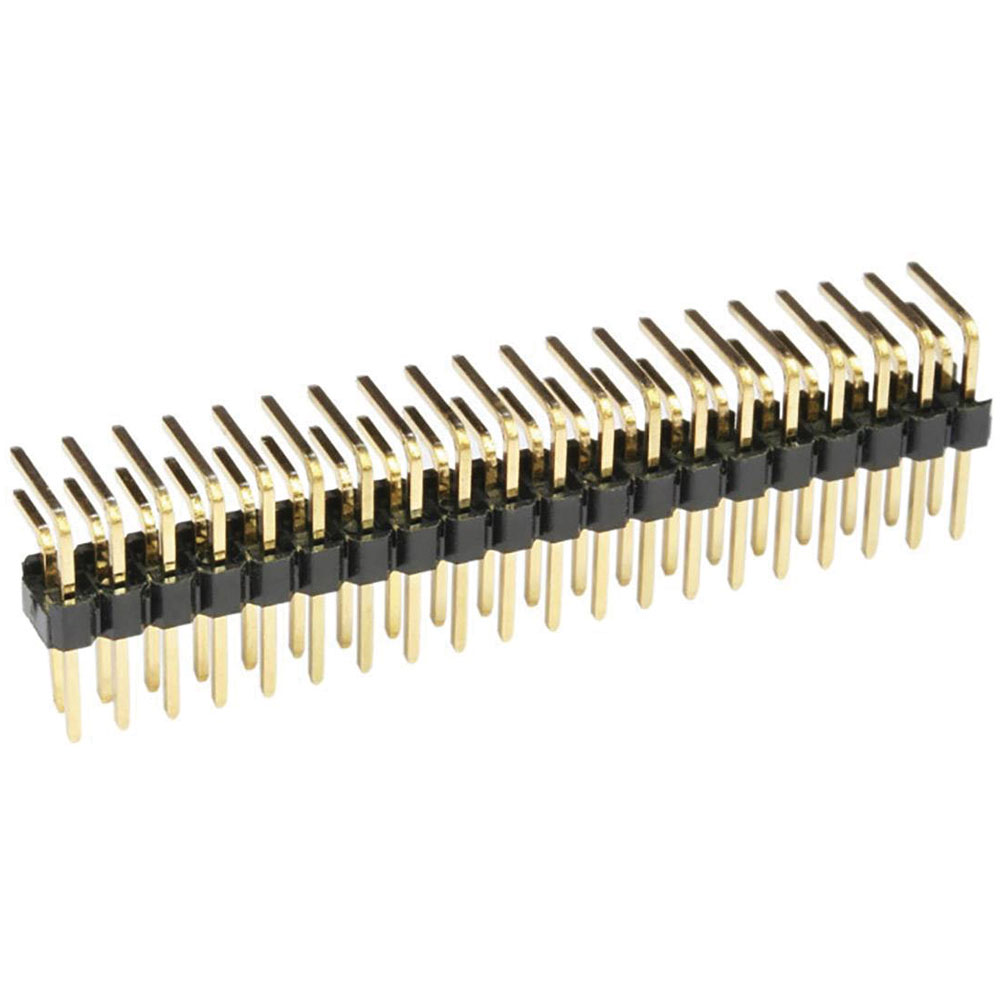

econ connect SL32G2 Pin Strip standard 2 rows 16 pins per row 1pc

Image Representative of Range

econ connect SL32G2 Pin Strip standard 2 rows 16 pins per row 1pc

econ connect
Standard range
Order Code:

02-7641

Brand: econ connect MPN: SL32G2
Qty Unit Price (Ex VAT)
1+ £0.460
Price per unit {{ IncVat ? 'Inc' : 'Ex' }} VAT
657 in stock, despatched in 4 working days

The econ connect SL32G2 pin strip (standard) features two rows with 16 pins per row. This part is typically used for electrical connections and prototyping in circuits. Made by econ connect, it is suitable for application in electronic and electrical engineering projects.
Board contact surface Gold plated
Connection Solder pins
Connection angle 180°
Connector contact surface Gold plated
Connector orientation Perpendicular (to the PCB)
Connector system wire-to-board
Connector type Pin strip, straight
Contact material Copper alloy
CS 2.54mm
Factory colour Black
Insulation material PBT
Manufacturer part # SL32G2
Max. temperature 105°C
Min. temperature -40°C
Misc Attribute SL32G2
No. of rows 2
Nominal current 3A
Nominal current - rounded value 3A
Pin shape Square
Pins per row 16
RoHS-compliant Yes
Total number of pins 32
Type Pin strip (standard)
