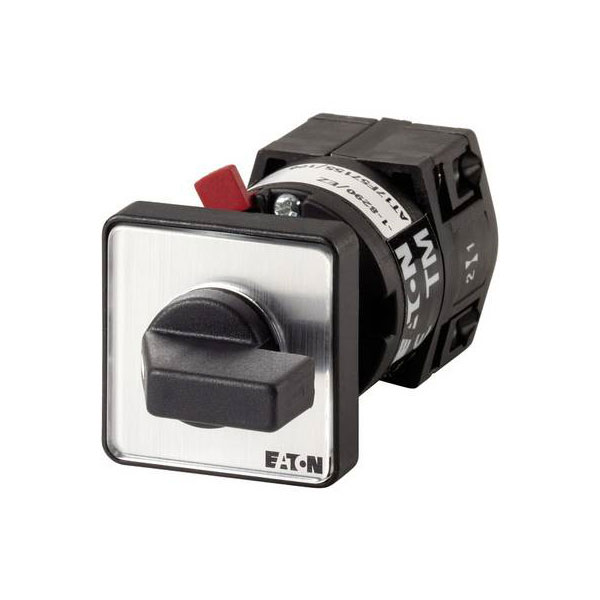

The Eaton TM-1-8210/EZ Limit Switch is a durable rotary cam switch, featuring a 10 A capacity and a 2 x 60-degree operation, available in a grey and black finish. This high-quality switch is designed for use in reversing, changeover, and selection applications. It is ideal for controlling and safeguarding machinery in industrial settings.
| Type |
Limit switch |
| Number of Positions |
1 |
| Complete device in housing |
FALSE |
| Connection |
Plug & Clip |
| Degree of protection (IP), front side |
IP65 |
| Degree of protection (NEMA), front side |
12 |
| Dim |
(L x W) 30 mm x 30 mm |
| Functions |
latch |
| Housing Material |
Plastic |
| IP Rating |
IP55 |
| Length |
30mm |
| Max. temperature |
+50°C |
| Min. temperature |
-25°C |
| Misc Attribute |
TM-1-8210/EZ |
| Model |
Reverser |
| Mounting Type |
Centre lock |
| Number of auxiliary contacts as change-over contact |
0 |
| Number of auxiliary contacts as normally closed contact |
0 |
| Number of auxiliary contacts as normally open contact |
0 |
| Operation type |
Toggle |
| Power |
3kW |
| Print motif |
1/0/2 |
| Rated operation current Ie at AC-3, 400 V |
0A |
| Rated operation power at AC-3, 400 V |
1.1kW |
| Rated permanent current Iu |
10A |
| Suitable for distribution board installation |
FALSE |
| Suitable for floor mounting |
FALSE |
| Suitable for front mounting |
TRUE |
| Suitable for intermediate mounting |
FALSE |
| Switching angle |
2 x 60 ° |
| Switching current (max.) |
10A |
| Thread Size |
M2.5 |
| Type of control element |
Short thumb-grip |
| Type of electrical connection of main circuit |
Screw connection |
| Width |
30mm |
| With retraction in 0-position |
FALSE |
| With zero (off) position |
TRUE |
