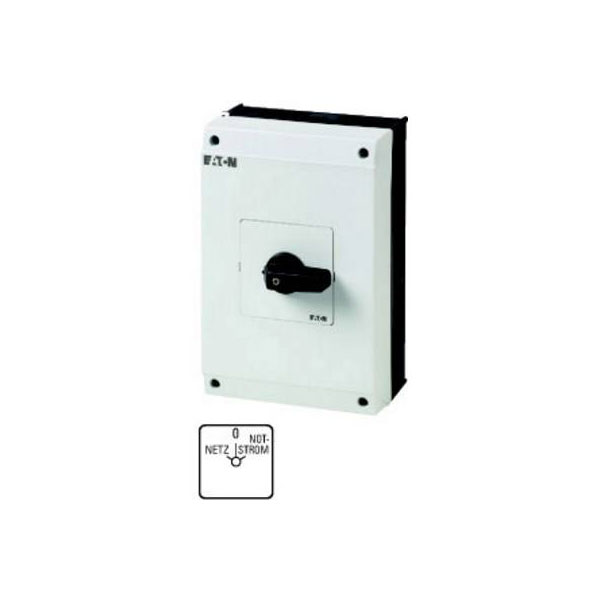

The Eaton T5B-4-8902/I4 limit switch, rated at 63 A, serves as a versatile rotary cam switch. Its grey and black colour scheme complements its design for applications requiring reversing, changeover, or selection switching. Commonly used in industrial settings, this switch handles various configurations with precise 2 x 60° operation angles.
| Type |
Limit switch |
| Complete device in housing |
TRUE |
| Connection |
Plug & Clip |
| Degree of protection (IP), front side |
IP65 |
| Degree of protection (NEMA), front side |
12 |
| Depth |
160mm |
| Dim |
(W x H x D) 160 x 240 x 160 mm |
| Functions |
latch |
| Height |
240mm |
| Housing Material |
Plastic |
| IP rating |
IP65 |
| Max. temperature |
+50°C |
| Min. temperature |
-25°C |
| Misc Attribute |
T5B-4-8902/I4 |
| Model |
Reverser |
| Mounting Type |
Structure |
| Number of auxiliary contacts as change-over contact |
0 |
| Number of auxiliary contacts as normally closed contact |
0 |
| Number of auxiliary contacts as normally open contact |
0 |
| Number of pins |
4 |
| Number of Poles |
4 |
| Operation type |
Toggle |
| Power |
22kW |
| Print motif |
Mains/0/Backup |
| Rated operation current Ie at AC-3, 400 V |
41A |
| Rated operation power at AC-3, 400 V |
22kW |
| Rated permanent current Iu |
63A |
| Suitable for distribution board installation |
FALSE |
| Suitable for floor mounting |
TRUE |
| Suitable for front mounting |
FALSE |
| Suitable for intermediate mounting |
FALSE |
| Switching angle |
2 x 60 ° |
| Switching current (max.) |
63A |
| Thread Size |
M25 |
| Type of control element |
Short thumb-grip |
| Type of electrical connection of main circuit |
Screw connection |
| Width |
160mm |
| With retraction in 0-position |
FALSE |
| With zero (off) position |
TRUE |
