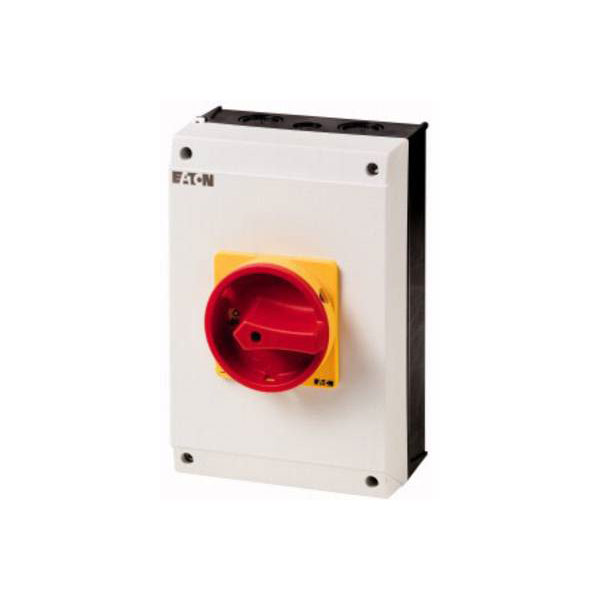

Eaton manufactures the T5B-4-15682/I4/SVB limit switch with a current rating of 63 A and a voltage of 690 V. This rotary cam switch is primarily used for reversing, changeover, and selection applications, making it versatile for various electrical systems. The switch features a distinctive yellow and red design and provides a precise 90-degree operation.
| Type |
Limit switch |
| Colour control element |
Red |
| Conditioned rated short-circuit current Iq |
2kA |
| Connection |
Screws |
| Degree of protection (IP), front side |
IP65 |
| Degree of protection (NEMA) |
12 |
| Device construction |
Complete device in housing |
| Dim |
(W x H x D) 160 x 240 x 160 mm |
| Functions |
latch |
| Interlockable |
TRUE |
| IP rating |
IP65 |
| Max. rated operation voltage Ue AC |
690V |
| Max. temperature |
+50°C |
| Min. temperature |
-25°C |
| Misc Attribute 1 |
Surface-mounted main switch |
| Misc Attribute 2 |
T5B-4-15682/I4/SVB |
| Motor drive integrated |
FALSE |
| Motor drive optional |
FALSE |
| Mounting Type |
Structure |
| Number of auxiliary contacts as change-over contact |
0 |
| Number of auxiliary contacts as normally closed contact |
1 |
| Number of auxiliary contacts as normally open contact |
1 |
| Number of pins |
6 |
| Number of Poles |
6 |
| Number of switches |
1 |
| Operation type |
EPO rotary switch |
| Power |
22kW |
| Print motif |
OFF/ON |
| Rated operating voltage |
690-690V |
| Rated operation power at AC-23, 400 V |
30kW |
| Rated operation power at AC-3, 400 V |
22kW |
| Rated permanent current at AC-21, 400 V |
63A |
| Rated permanent current at AC-23, 400 V |
63 |
| Rated permanent current Iu |
63A |
| Rated short-time withstand current lcw |
1.3kA |
| Suitable for distribution board installation |
FALSE |
| Suitable for floor mounting |
TRUE |
| Suitable for front mounting 4-hole |
FALSE |
| Suitable for front mounting centre |
FALSE |
| Suitable for intermediate mounting |
FALSE |
| Switching angle |
1 x 90 ° |
| Switching current (max.) |
63A |
| Switching power at 400 V |
30kW |
| Switching voltage |
690V |
| Temperature range |
-25 - +50°C |
| Thread Size |
M6 |
| Type of control element |
Door coupling rotary drive |
| Type of electrical connection of main circuit |
Screw connection |
| Version as emergency stop installation |
TRUE |
| Version as main switch |
TRUE |
| Version as maintenance-/service switch |
TRUE |
| Version as reversing switch |
FALSE |
| Version as safety switch |
FALSE |
| Voltage release optional |
FALSE |
| With pre-assembled cabling |
FALSE |
