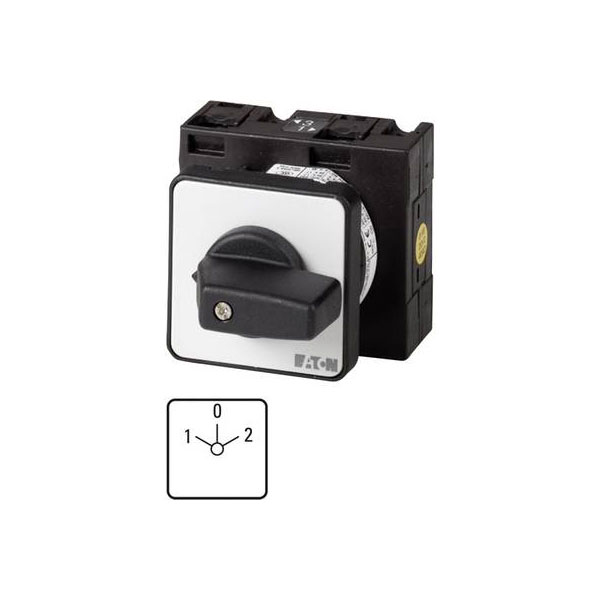

Eaton's T3-3-8401/E is a versatile limit switch capable of handling 32 A at 690 V, featuring a grey and black design. This rotary cam switch offers multiple functions, including reversing, changeover, and selection switching with two 30° positions. It is typically used in industrial applications for controlling machinery and ensuring operational safety.
| Type |
Limit switch |
| Complete device in housing |
FALSE |
| Connection |
Screws |
| Degree of protection (IP), front side |
IP65 |
| Degree of protection (NEMA), front side |
12 |
| Dim |
(L x W) 48 mm x 48 mm |
| Functions |
latch |
| Housing Material |
Plastic |
| IP rating |
IP65 |
| Length |
48mm |
| Max. temperature |
+50°C |
| Min. temperature |
-25°C |
| Misc Attribute 1 |
Reversing switch |
| Misc Attribute 2 |
T3-3-8401/E |
| Model |
Reversing switch |
| Mounting Type |
Recess-mount |
| Number of auxiliary contacts as change-over contact |
0 |
| Number of auxiliary contacts as normally closed contact |
0 |
| Number of auxiliary contacts as normally open contact |
0 |
| Number of pins |
3 |
| Number of Poles |
3 |
| Operation type |
Toggle |
| Power |
13kW |
| Print motif |
1/0/2 |
| Rated operation current Ie at AC-3, 400 V |
23.7A |
| Rated operation power at AC-3, 400 V |
12kW |
| Rated permanent current Iu |
32A |
| Suitable for distribution board installation |
FALSE |
| Suitable for floor mounting |
FALSE |
| Suitable for front mounting |
TRUE |
| Suitable for intermediate mounting |
FALSE |
| Switching angle |
2 x 30 ° |
| Switching current (max.) |
32A |
| Switching voltage |
690V |
| Thread Size |
M4 |
| Type of control element |
Short thumb-grip |
| Type of electrical connection of main circuit |
Screw connection |
| Width |
48mm |
| With retraction in 0-position |
FALSE |
| With zero (off) position |
TRUE |
