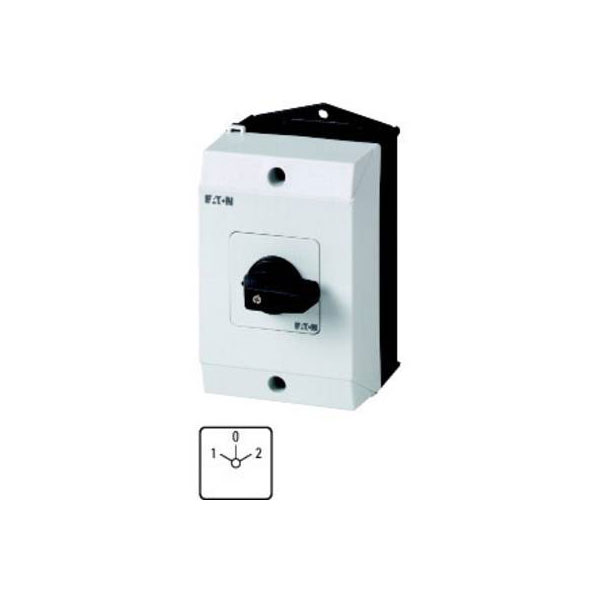

Eaton manufactures the T0-3-8212/I1 limit switch with a capacity of 20 A and a 2 x 60° operating range. This grey and black switch is suitable for use in various industrial control settings. Typical applications include automated machinery and equipment monitoring systems.
| Type |
Limit switch |
| Complete device in housing |
TRUE |
| Connection |
Screws |
| Degree of protection (IP), front side |
IP65 |
| Degree of protection (NEMA), front side |
12 |
| Depth |
95mm |
| Dim |
(W x H x D) 80 x 137 x 95 mm |
| Functions |
latch |
| Height |
137mm |
| Housing Material |
Plastic |
| IP rating |
IP65 |
| Max. temperature |
+50°C |
| Min. temperature |
-25°C |
| Misc Attribute |
T0-3-8212/I1 |
| Model |
Reverser |
| Mounting Type |
Structure |
| Number of auxiliary contacts as change-over contact |
0 |
| Number of auxiliary contacts as normally closed contact |
0 |
| Number of auxiliary contacts as normally open contact |
0 |
| Number of pins |
3 |
| Number of Poles |
3 |
| Operation type |
Toggle |
| Power |
6.5kW |
| Print motif |
1/0/2 |
| Rated operation current Ie at AC-3, 400 V |
11.5A |
| Rated operation power at AC-3, 400 V |
4kW |
| Rated permanent current Iu |
20A |
| Suitable for distribution board installation |
FALSE |
| Suitable for floor mounting |
TRUE |
| Suitable for front mounting |
FALSE |
| Suitable for intermediate mounting |
FALSE |
| Switching angle |
2 x 60 ° |
| Switching current (max.) |
20A |
| Type of control element |
Short thumb-grip |
| Type of electrical connection of main circuit |
Screw connection |
| Width |
80mm |
| With retraction in 0-position |
FALSE |
| With zero (off) position |
TRUE |
