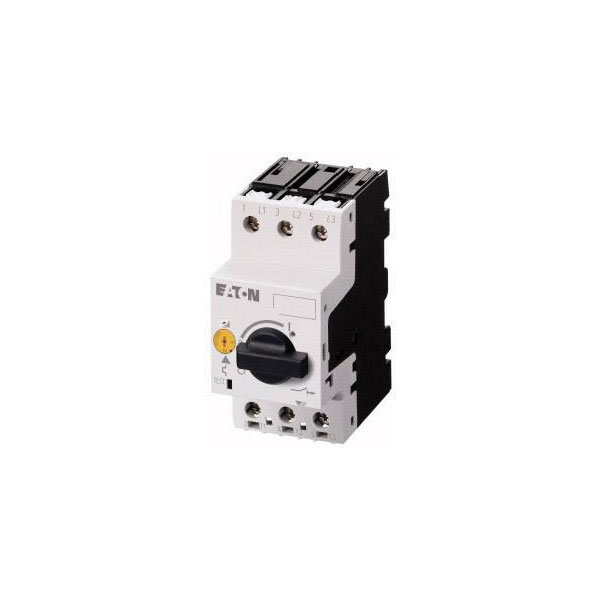

Eaton PKZM0-20 Overload relay 690VAC 20A rotary switch 3-pole

The Eaton PKZM0-20 is an overload relay designed for motor protection with a capacity of 20 A. It features a rotary switch suitable for use with AC voltages up to 690 V. Typically, this device is used in industrial settings to safeguard motors against overload conditions.

Type	Motor Ptotection Circuit-Breaker
Number of Poles	3
Rated operation power at AC-3, 230 V	5.5kW
Rated operation power at AC-3, 400 V	9kW
IP Rating	IP20, IP00
Adjustment range undelayed short-circuit release	310-310A
Colour	Grey
Connection	Screw terminal
Degree of protection (IP)	IP20
Depth	76mm
Device construction	Built-in device fixed built-in technique
Dim	(L x W x H) 76 x 45 x 93 mm
Height	93mm
Length	76mm
Maximum Temperature	+55°C
Min. temperature	-25°C
Misc Attribute 1	PKZM0-20
Misc Attribute 2	3-pin
Overload release current setting	16-20A
Phase failure sensitive	TRUE
Power loss	5.82W
Rated operating voltage	690-690V
Rated permanent current Iu	20A
Rated short-circuit breaking capacity Icu at 400 V, AC	50kA
Switch off technique	Thermomagnetic
Switch/button features	+ rotary switch
Switching current (max.)	20A
Switching current (min.)	16A
Switching Voltage	690V AC
Type of control element	Turn button
Type of electrical connection of main circuit	Screw connection
Weight	0
Width	45mm
With integrated auxiliary switch	FALSE
With integrated under voltage release	FALSE
With thermal overload protection	FALSE
