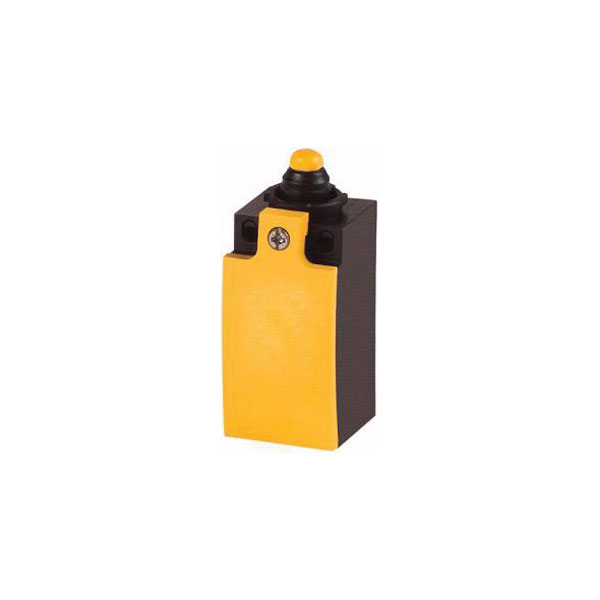

The Eaton LS-20 Limit Switch, model 266120, is designed for industrial use with a voltage rating of 400 V and a current rating of 6 A. It boasts an IP66/IP67 rating, making it suitable for harsh environments where dust and water resistance are critical. Typical applications include machinery position detection and safety interlocking systems in manufacturing setups.
| Type |
Limit switch |
| Alignment of the control element |
Roller cam straight |
| Ambient temperature during operating |
-25-70°C |
| Coating housing |
Other |
| Connection |
Pull spring |
| Construction type housing |
Cuboid |
| Contact type |
2 makers |
| Degree of protection (IP) |
IP66/IP67 |
| Degree of protection (NEMA) |
Other |
| Depth |
33.5mm |
| Diameter sensor |
0mm |
| Dim |
(L x W x H) 33.5 x 31 x 61 mm |
| Durability |
>8 x 10 6 cycles |
| Explosion safety category for dust |
None |
| Explosion safety category for gas |
None |
| Forced opening |
FALSE |
| Height |
61mm |
| Height of sensor |
61mm |
| Housing Material |
Plastic |
| Length |
33.5mm |
| Length of sensor |
33.5mm |
| Material |
Plastic |
| Max. temperature |
+70°C |
| Min. temperature |
-25°C |
| Misc Attribute |
LS-20 |
| Number of contacts as change-over contact |
0 |
| Number of contacts as normally closed contact |
0 |
| Number of contacts as normally open contact |
2 |
| Number of safety auxiliary contacts |
0 |
| Operation type |
Tappet |
| Output electronic |
FALSE |
| Rated operation current Ie at AC-15, 125 V |
6A |
| Rated operation current Ie at AC-15, 230 V |
6A |
| Rated operation current Ie at AC-15, 24 V |
6A |
| Rated operation current Ie at DC-13, 125 V |
0.8A |
| Rated operation current Ie at DC-13, 230 V |
0.3A |
| Rated operation current Ie at DC-13, 24 V |
3A |
| Suitable for safety functions |
FALSE |
| Switching current (max.) |
6A |
| Switching function |
Slow-action switch |
| Switching function latching |
FALSE |
| Switching voltage |
400V |
| Type of control element |
Plunger |
| Type of electric connection |
Cable entry metrical |
| Type of interface |
None |
| Type of interface for safety communication |
None |
| Width |
31mm |
| Width sensor |
31mm |
| With status indication |
FALSE |
