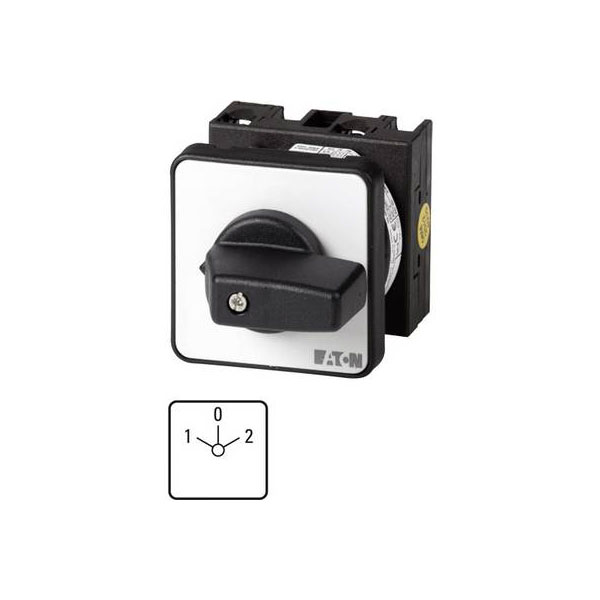

The Eaton T0-2-8211/E limit switch is a robust device with a current rating of 20 A and a voltage capacity of 690 V. Featuring a grey and black design, it functions as a rotary cam, reversing, changeover, or selection switch. Typically used in industrial settings, it effectively manages and controls electrical circuits within machinery or equipment.
| Type |
Limit switch |
| Complete device in housing |
FALSE |
| Connection |
Screws |
| Degree of protection (IP), front side |
IP65 |
| Degree of protection (NEMA), front side |
12 |
| Dim |
(L x W) 48 mm x 48 mm |
| Functions |
latch |
| Housing Material |
Plastic |
| IP rating |
IP65 |
| Length |
48mm |
| Max. temperature |
+50°C |
| Min. temperature |
-25°C |
| Misc Attribute 1 |
Group switch installation |
| Misc Attribute 2 |
T0-2-8211/E |
| Model |
Reverser |
| Mounting Type |
Recess-mount |
| Number of auxiliary contacts as change-over contact |
0 |
| Number of auxiliary contacts as normally closed contact |
0 |
| Number of auxiliary contacts as normally open contact |
0 |
| Number of pins |
2 |
| Number of Poles |
2 |
| Operation type |
Toggle |
| Power |
6.5kW |
| Print motif |
1/0/2 |
| Rated operation current Ie at AC-3, 400 V |
11.5A |
| Rated operation power at AC-3, 400 V |
4kW |
| Rated permanent current Iu |
20A |
| Suitable for distribution board installation |
FALSE |
| Suitable for floor mounting |
FALSE |
| Suitable for front mounting |
TRUE |
| Suitable for intermediate mounting |
FALSE |
| Switching angle |
2 x 60 ° |
| Switching current (max.) |
20A |
| Switching voltage |
690V |
| Thread Size |
M3.5 |
| Type of control element |
Short thumb-grip |
| Type of electrical connection of main circuit |
Screw connection |
| Width |
48mm |
| With retraction in 0-position |
FALSE |
| With zero (off) position |
TRUE |
