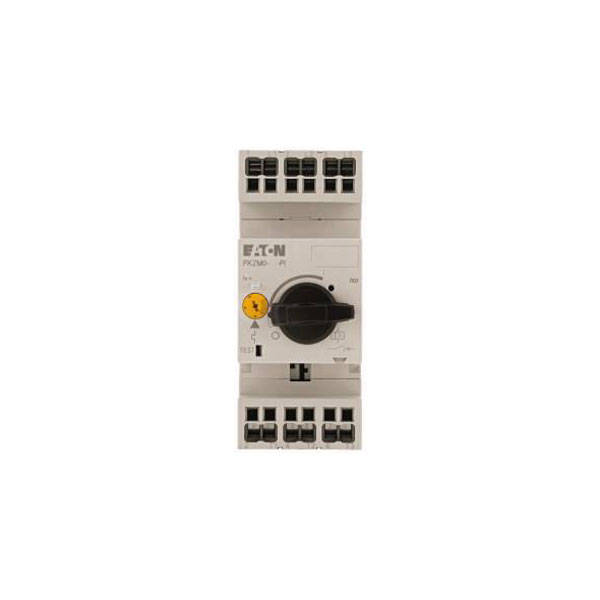

Eaton 199157 PKZM0 Overload relay 690V AC 10A 1pc

Eaton's 199157 PKZM0-10-PI overload relay is designed for AC applications up to 690 V and a current rating of 10 A. It serves as a safety switch and residual current circuit breaker to protect electrical circuits from overloads. This relay is typically used in industrial settings to enhance electrical safety and circuit protection.

Type	Motor Ptotection Circuit-Breaker
Number of Poles	3
Rated operation power at AC-3, 230 V	2.2kW
Rated operation power at AC-3, 400 V	4kW
Colour	Multicolour
Connection	Push-in connector
Dim	(L x W x H) 75 x 45 x 109 mm
Durability	0.1 x 106
Height	109mm
Length	75mm
Maximum Temperature	+55°C
Min. temperature	-25°C
Misc Attribute 1	PKZM0-10-PI
Misc Attribute 2	3-pin
Switching current (max.)	10A
Switching current (min.)	6.3A
Switching Voltage	690V AC
Width	45mm
