Eaton 106791 LS-S11D limit switch 400V 6A tappet IP66/IP67 1pc

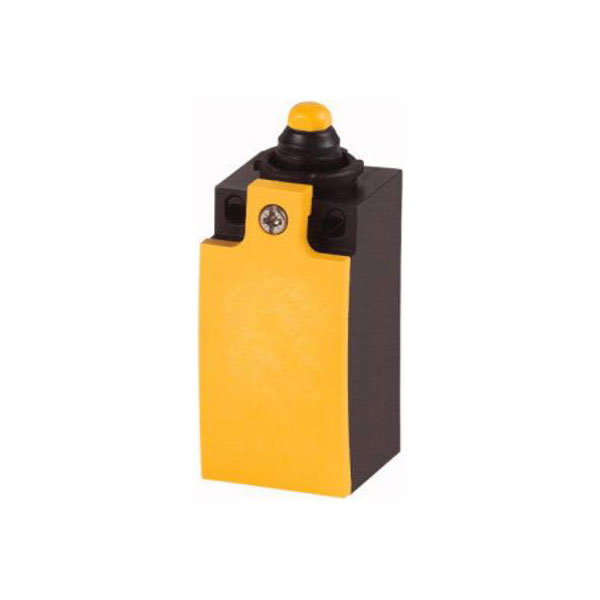

Image Representative of Range

Eaton 106791 LS-S11D limit switch 400V 6A tappet IP66/IP67 1pc

Eaton
Order Code:

02-5580

Brand: Eaton MPN: 106791 EAN-13: 4015081065585
Qty Unit Price (Ex VAT)
1+ £24.05
Price per unit {{ this._page.IncVat ? 'Inc' : 'Ex' }} VAT
10 in stock, despatched in 4 working days

The Eaton LS-S11D limit switch operates at 400 V and handles up to 6 A. It is designed with a tappet mechanism and offers protection with IP66 and IP67 ratings. This switch is suitable for industrial applications requiring reliable and robust position sensing.
Type Limit switch
Alignment of the control element Roller cam straight
Ambient temperature during operating -25-70°C
Coating housing Other
Construction type housing Cuboid
Degree of protection (IP) IP66/IP67
Degree of protection (NEMA) Other
Depth 33.5mm
Diameter sensor 0mm
Dim (L x W x H) 33.5 x 31 x 61 mm
Durability >8 x 10 6 cycles
Explosion safety category for dust None
Explosion safety category for gas None
Forced opening TRUE
Height 61mm
Height of sensor 61mm
Housing Material Plastic
Length 33.5mm
Length of sensor 33.5mm
Material Plastic
Max. temperature +70°C
Min. temperature -25°C
Misc Attribute LS-S11D
Number of contacts as change-over contact 0
Number of contacts as normally closed contact 1
Number of contacts as normally open contact 1
Number of safety auxiliary contacts 1
Operation type Tappet
Output electronic FALSE
Rated operation current Ie at AC-15, 125 V 6A
Rated operation current Ie at AC-15, 230 V 6A
Rated operation current Ie at AC-15, 24 V 6A
Rated operation current Ie at DC-13, 125 V 0.8A
Rated operation current Ie at DC-13, 230 V 0.3A
Rated operation current Ie at DC-13, 24 V 3A
Suitable for safety functions TRUE
Switching current (max.) 6A
Switching function Slow-action switch
Switching function latching FALSE
Switching Voltage 400V
Type of control element Plunger
Type of electric connection Cable entry metrical
Type of interface None
Type of interface for safety communication None
Width 31mm
Width sensor 31mm
With status indication FALSE
