EAO 82-6152.11A4 22mm Illum PB St.Steel Flush Screw Mom. Ring Red/Green 24VAC/DC

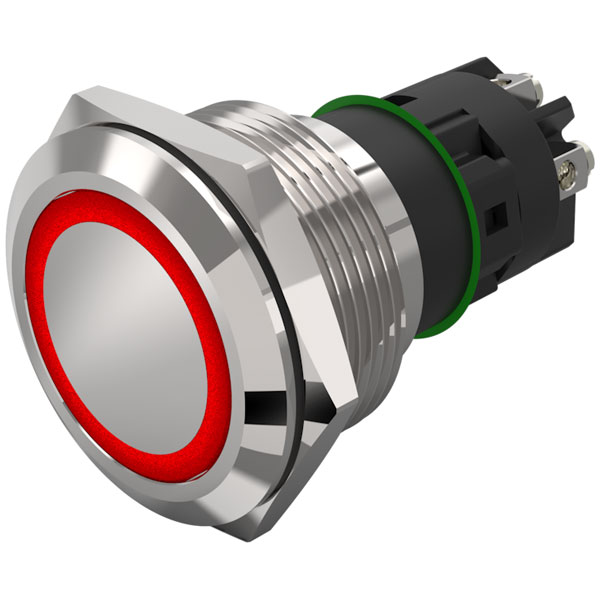

EAO 82-6152.11A4 is a 22 mm illuminated pushbutton made from stainless steel with a flush/flush design. It features a screw terminal connection and momentary action with silver contacts, providing a reliable interface for circuit control. The pushbutton includes a surrounding ring illumination that can alternate between red and green, suitable for applications requiring clear visual indicators, such as in control panels or industrial machinery interfaces. The device operates effectively within a range of 24 V AC/DC, and has screw terminals for connection.

Type	Pushbutton
Contact Configuration	SPDT NO/NC
Switch Function	1 breaker
Current Rating	3A
Mounting	Panel
Illumination	Green, red
Panel Cutout Dimensions	22
Approbations	Cb, Ccc, C Ul, Ul
Climate Resistance	Damp Heat, 21 Days According To Iec 60512-11
Conformities	Ce, 2011 / 65 / Ec (rohs), 2014 / 35 / Eu (lvd)
Contacts Concat	1 C
Contacts Material	Silver
Electrical Lifetime	50 000 Cycles Of Operation
Erp Ehq Custom Number	8536.5000
Erp Ehq Source Country	Ch
Front Bezel Material	Stainless Steel
Front Bezel Shape	Flush
Front Dimension Concat	Ø 25mm
Front Form	Round
Illumination Colour Concat	Red / Green
Ip Front Protection	Ip65, Ip67
Lens Colour	Silver
Lens Illumination	Illuminated
Lens Material	Stainless Steel
Lens Shape	Flush
Mechanical Lifetime	500 000 Cycles Of Operation
Mounting Cut Out Dps Concat	Ø 22mm
Operating Concat	24 V / 7mA
Operating Current Concat	7mA
Operating Temperature	– 30 °c … + 70°C
Operating Voltage 1 Concat	24 V
Operating Voltage Concat	24 V Ac/dc
Output Hsd	Yes
Pollution degree	2, According To En Iec 60947-1
Shock Resistance	Max. 500 M / S² As Per Iec 60068-2-27
Switching Action Concat	Momentary
Switching System	Snap-action Switching Element
Terminal Concat	Screw terminal
Thermal Current Ith	5 A
Vibration Resistance	10 … 500 Hz, Amplitude 1.5 Mm P-p According To Iec 60068-2-6
Weight	0.018
