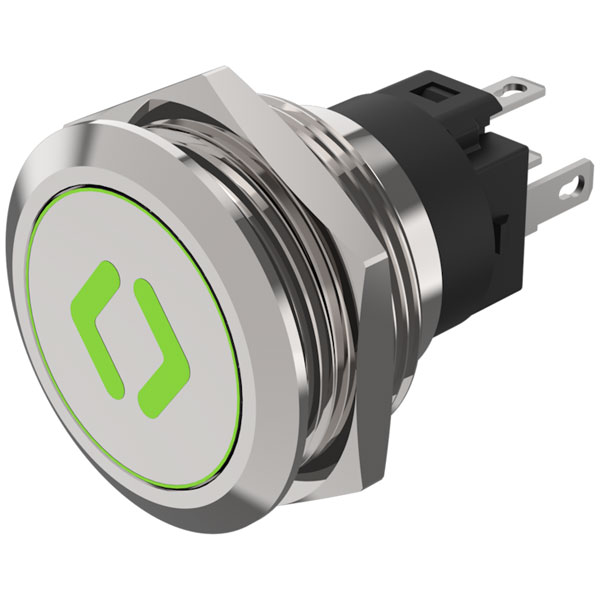

EAO 82-6151.1AA4.B006 22mm Illum PB Symbol-DoorOpen Solder Mom Red/Grn 24VDC LED

EAO 82-6151.1AA4.B006 is a 22 mm illuminated pushbutton designed for precision control applications, offering both reliability and versatility. This component features a momentary action with an illuminated symbol indicating Door open, which provides a clear and immediate visual cue to operators. It is equipped with a soldering terminal and utilises a dual-colour LED system capable of emitting red and green light with a standard operating voltage of 24 V DC.

Type	Pushbutton
Contact Configuration	SPNO
Switch Function	Off-(On)
Current Rating	3A
Mounting	Panel
Illumination	N/A
Panel Cutout Dimensions	22
Approbations	Cb, Ccc, C Ul, Ul
Climate Resistance	Damp Heat, 21 Days According To Iec 60512-11
Conformities	Ce, 2011 / 65 / Ec (rohs), 2014 / 35 / Eu (lvd)
Contacts Concat	1 C
Contacts Material	Silver
Electrical Lifetime	50 000 Cycles Of Operation
Erp Ehq Custom Number	8536.5000
Erp Ehq Source Country	Cn
Front Bezel Material	Stainless Steel
Front Bezel Shape	Flush
Front Dimension Concat	Ø 25mm
Front Form	Round
Illumination Colour Concat	Red/green
Ip Front Protection	Ip65, Ip67
Lens Colour	Silver
Lens Illumination	Illuminated
Lens Material	Plastic Metalised
Lens Shape	Flush
Mechanical Lifetime	1 Mil. Cycles Of Operation (rcc/rpb)
Mounting Cut Out Dps Concat	Ø 22mm
Operating Concat	24 V / 7mA
Operating Current Concat	7mA
Operating Temperature	– 30 °c … + 70°C
Operating Voltage 1 Concat	24 V
Operating Voltage Concat	24 V Dc
Output Hsd	Yes
Pollution degree	2, According To En Iec 60947-1
Shock Resistance	Max. 500 M / S² As Per Iec 60068-2-27
Switching Action Concat	Momentary
Switching System	Snap-action Switching Element
Symbol	Door Open
Terminal Concat	Soldering terminal, 2.8 X 0.5 Mm
Thermal Current Ith	5 A
Vibration Resistance	10 … 500 Hz, Amplitude 1.5 Mm P-p According To Iec 60068-2-6
Weight	0.025
