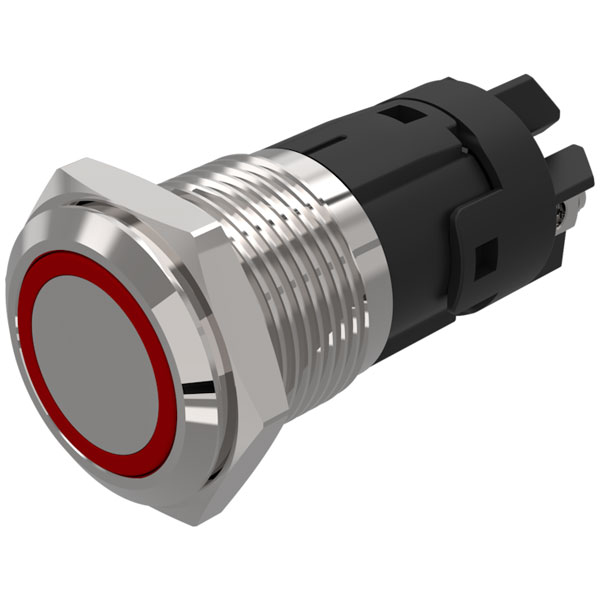

EAO 82-4152.01A4 is a 16 mm indicator constructed from stainless steel, featuring a flush/flush design and screw terminals for convenient installation and secure connections. The indicator is equipped with ring contacts and is capable of displaying red or green illumination, suitable for use with a 24 V AC/DC power supply. Its robust stainless steel construction ensures reliability and durability, making it particularly well-suited for operational environments that require high resistance to corrosion and mechanical wear.
| Type |
Indicator |
| Contact Configuration |
SPDT NO/NC |
| Switch Function |
N/A |
| Current Rating |
3A |
| Mounting |
Panel |
| Illumination |
N/A |
| Panel Cutout Dimensions |
16 |
| Approbations |
Cb, Ccc, C Ul, Ul |
| Climate Resistance |
Damp Heat, 21 Days According To Iec 60512-11 |
| Conformities |
Ce, 2011 / 65 / Ec (rohs), 2014 / 35 / Eu (lvd) |
| Electrical Lifetime |
50 000 Cycles Of Operation |
| Erp Ehq Custom Number |
8536.5000 |
| Erp Ehq Source Country |
Ch |
| Front Bezel Material |
Stainless Steel |
| Front Bezel Shape |
Flush |
| Front Dimension Concat |
Ø 18mm |
| Front Form |
Round |
| Illumination Colour Concat |
Red / Green |
| Ip Front Protection |
Ip65, Ip67 |
| Lens Colour |
Silver |
| Lens Illumination |
Illuminated |
| Lens Material |
Stainless Steel |
| Lens Shape |
Flush |
| Mounting Cut Out Dps Concat |
Ø 16mm |
| Operating Concat |
24 V / 7mA |
| Operating Current Concat |
7mA |
| Operating Temperature |
– 30 °c … + 70°C |
| Operating Voltage 1 Concat |
24 V |
| Operating Voltage Concat |
24 V Ac/dc |
| Output Hsd |
Yes |
| Pollution degree |
2, According To En Iec 60947-1 |
| Shock Resistance |
Max. 500 M / S² As Per Iec 60068-2-27 |
| Terminal Concat |
Screw terminal |
| Thermal Current Ith |
5 A |
| Vibration Resistance |
10 … 500 Hz, Amplitude 1.5 Mm P-p According To Iec 60068-2-6 |
| Weight |
0.018 |
