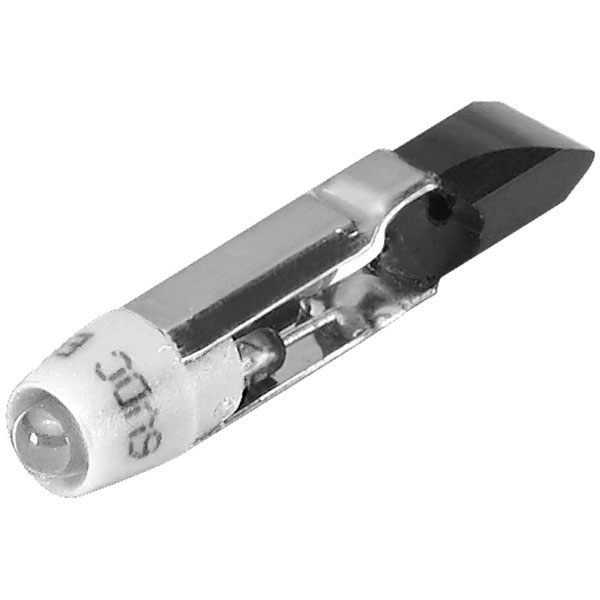

EAO 10-2113.1069 LED single T5,5 white diffuse 28VAC/DC 7/14mA half-wave rect.

EAO 10-2113.1069 is an LED indicator that features a single T5.5 form factor with a white diffuse lens designed for visibility in various light conditions. Operating on 28 VAC/DC voltage, the LED can function effectively with a current of either 7 mA or 14 mA, utilising half-wave rectification to ensure reliable performance in AC environments. This component is particularly suited for applications in engineering contexts where visual status indication is necessary, such as control panels.

Type	LED
Lamp/Lens Colour	White
Dom Wavelength Concat	X: 0,31 / Y: 0,32 Nm
Erp Ehq Custom Number	8539.5200
Erp Ehq Source Country	Cn
Illumination Colour Concat	White
Luminosity Concat	750 Mcd
Operating Concat	28 V +10% / 2.5 - 5 Ma ±15 %
Operating Current Concat	2,5 - 5 Ma ±15 %
Operating Voltage 1 Concat	28 V
Operating Voltage Concat	28 V Ac/dc +10%
Output Hsd	Yes
Weight	0.001
