Drive System Europe 10070190 Linear Actuator 300mm Stroke 200N Thrust

Drive System Europe by MSW
Standard range
Order Code:

11-6980

Brand: Drive System Europe by MSW MPN: 10070190 EAN-13: 4016138683158
Qty Unit Price (Ex VAT)
1+ £169.49
Price per unit {{ IncVat ? 'Inc' : 'Ex' }} VAT
2 in stock, despatched in 4 working days

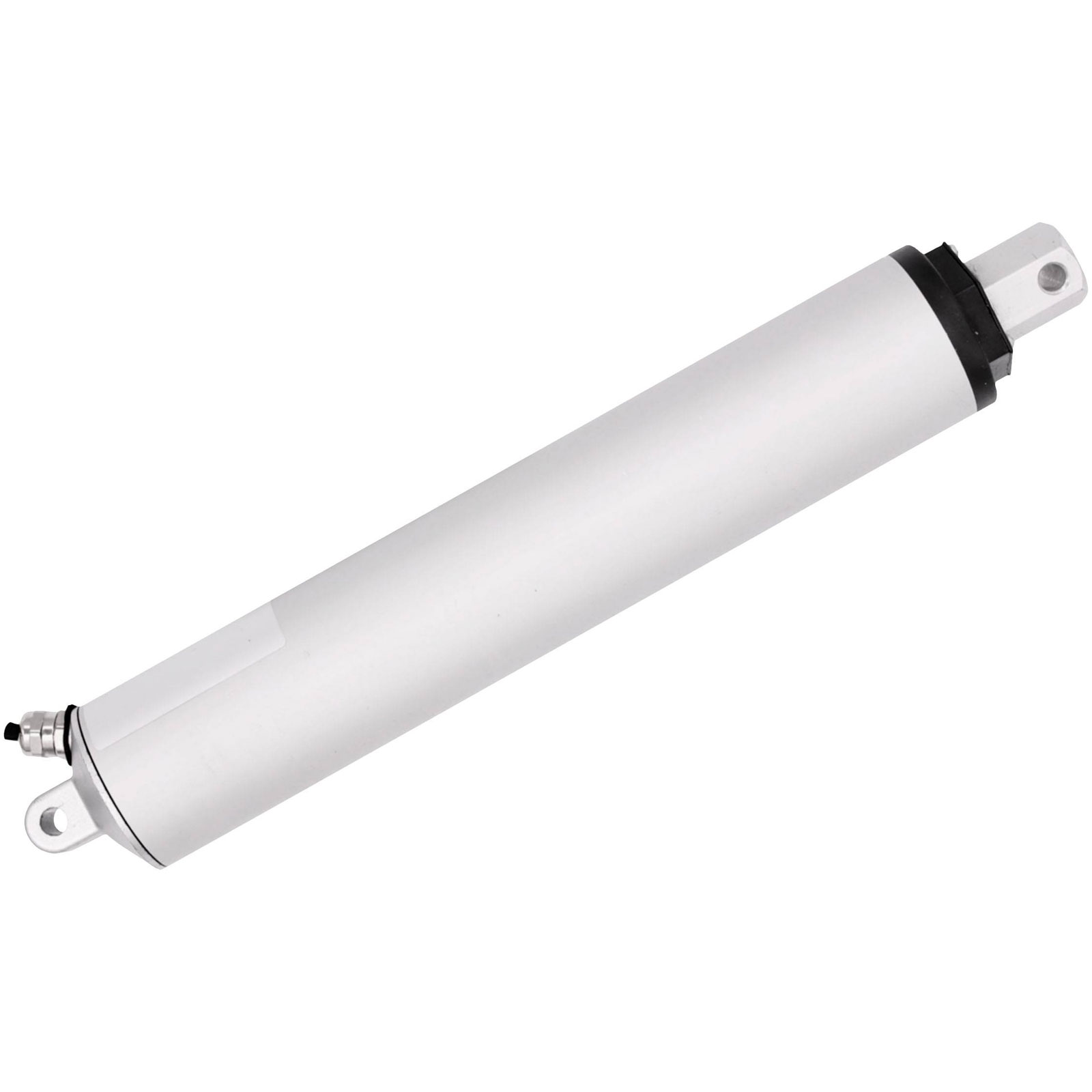

The Drive System Europe by MSW linear actuator DSAK4-12-200-300-IP54 features a stroke length of 300 mm and a thrust of 200 N, powered by a 12V DC source. This model is suitable for precise linear motion tasks, making it ideal for applications in automation equipment, adjustable furniture, and agricultural machinery. Its IP54 rating ensures protection against dust and water splashes, enhancing durability in various environments.
Type Linear actuator
IP rating IP54
Max. ambient temperature +65°C
Max. temperature +65°C
Min. ambient temperature -26°C
Min. temperature -26°C
Misc Attribute DSAK4-12-200-300-IP54
Nominal current 9.4A
Nominal current - rounded value 9.4A
Nominal voltage 12V DC
Speed (max.) 45 mm/s
Stroke length 300mm
Thrust 200N
