Drive System Europe 10070188 Linear Actuator 500mm 200N 24V IP54

Drive System Europe by MSW
Standard range
Order Code:

11-6978

Brand: Drive System Europe by MSW MPN: 10070188 EAN-13: 4016138683202
Qty Unit Price (Ex VAT)
1+ £180.20
Price per unit {{ IncVat ? 'Inc' : 'Ex' }} VAT
2 in stock, despatched in 4 working days

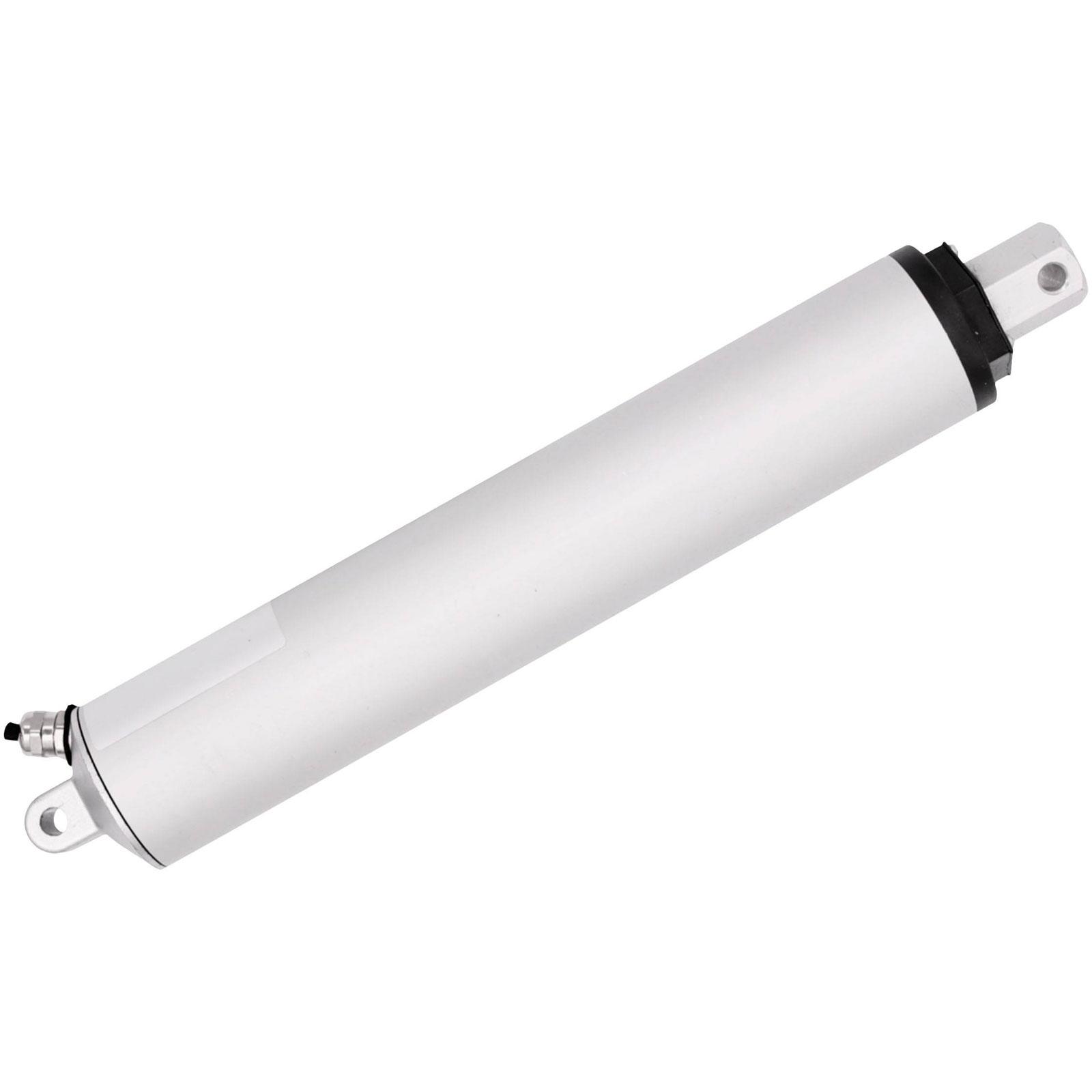

Drive System Europe by MSW manufactures the linear actuator DSAK4-24-200-500-IP54, which features a stroke length of 500 mm and thrust of 200 N with a 24 V DC power supply. This actuator is designed for reliable and precise movement, protected with an IP54 rating for moderate environmental conditions. It is ideal for applications requiring controlled linear motion, such as in automation and machinery systems.
Type Linear actuator
IP rating IP54
Manufacturer part # 10070188
Max. ambient temperature +65°C
Max. temperature +65°C
Min. ambient temperature -26°C
Min. temperature -26°C
Misc Attribute DSAK4-24-200-500-IP54
Nominal current 4.5A
Nominal current - rounded value 4.5A
Nominal voltage 24V DC
Speed (max.) 45 mm/s
Stroke length 500mm
Thrust 200N
