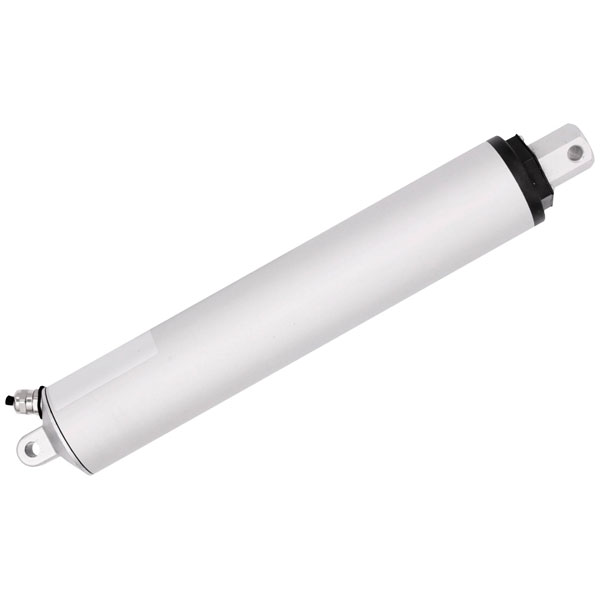

Drive System Europe 10070186 Linear Actuator 24V, 300mm, 100N, IP54

Drive System Europe by MSW
Order Code:

11-6976

Brand: Drive System Europe by MSW MPN: 10070186 EAN-13: 4016138683172
Qty Unit Price (Ex VAT)
1+ £164.55
Price per unit {{ this._page.IncVat ? 'Inc' : 'Ex' }} VAT
3 in stock, despatched in 4 working days

The Drive System Europe linear actuator DSAK4-24-100-300-IP54 is designed with a stroke length of 300 mm and provides a thrust of 100 N. It operates on 24 V DC and is suitable for environments requiring protection rated at IP54. This actuator is ideal for industrial automation and precise positioning tasks.
Type Linear actuator
IP Rating IP54
Max. ambient temperature +65°C
Max. temperature +65°C
Min. ambient temperature -26°C
Min. temperature -26°C
Misc Attribute DSAK4-24-100-300-IP54
Nominal Current 4.5A
Nominal current - rounded value 4.5A
Nominal Voltage 24V DC
Speed (max.) 140 mm/s
Stroke Length 300mm
Thrust 100N
