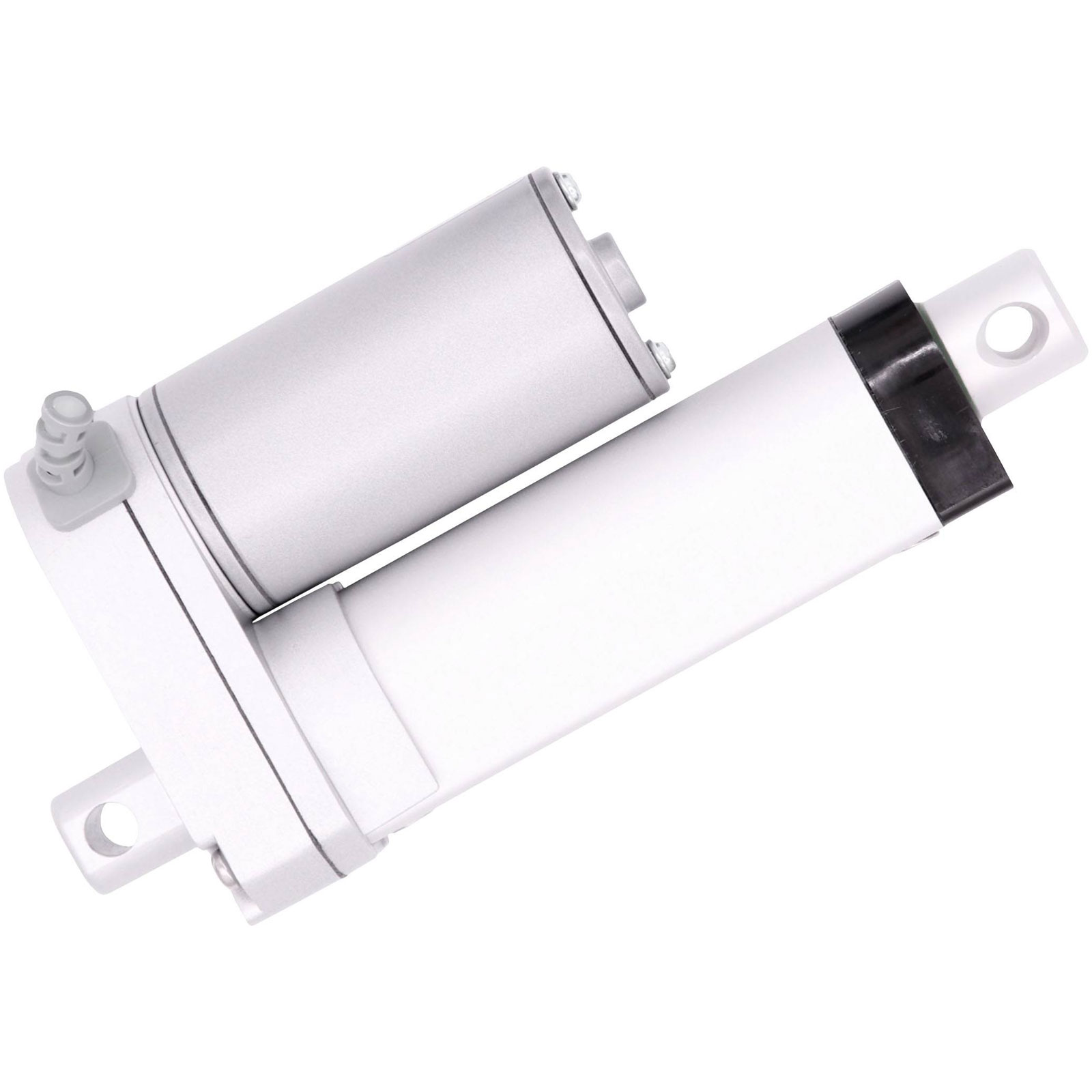

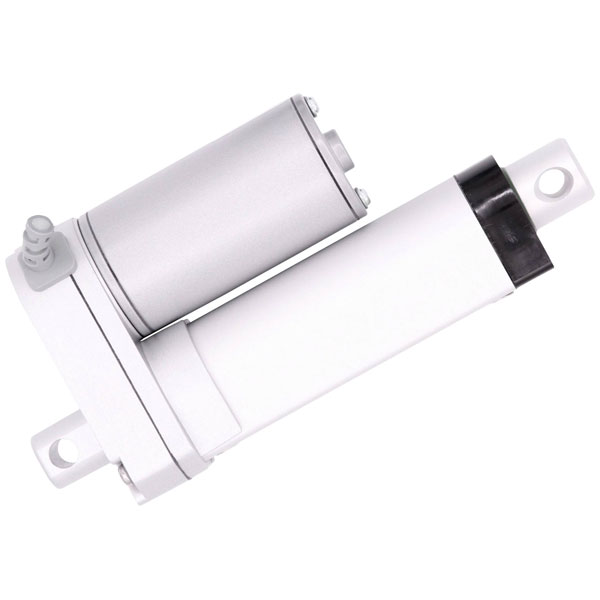

Drive System Europe 004005 Linear Actuator 200mm Stroke 1000N 24V DC

Drive System Europe by MSW
Standard range
Order Code:

11-6919

Brand: Drive System Europe by MSW MPN: 004005 EAN-13: 4016138654745
Qty Unit Price (Ex VAT)
1+ £156.53
Price per unit {{ IncVat ? 'Inc' : 'Ex' }} VAT
5 in stock, despatched in 4 working days

Drive System Europe by MSW manufactures the DSZY1-24-40-200-STD-IP65 linear actuator with a stroke length of 200 mm and a thrust of 1000 N, designed for 24 V DC power supply. This actuator is IP65 rated, ensuring protection against dust and water ingress, and is ideal for automation and drive technology applications. With a basic housing made from zinc alloy, it is commonly used in industrial and robotic systems.
Type Linear actuator
Current consumption 3.6A
Manufacturer part # 004005
Misc Attribute DSZY1-24-40-200-STD-IP65
Nominal current 1.6A
Nominal current - rounded value 1.6A
Nominal current (details) 1.6A
Nominal voltage 24V DC
Nominal voltage (details) 24V DC
Speed (max.) 8 mm/s
Stroke length 200mm
Thrust 1000N
